Dismantle Inspection and test (page 2 of 2)

Assemble 21. Fit dished washer beneath gear wheel with

Use Ragosine Listate Grease to lubricate gear wheel 22. Fit gear wheel to gearbox. teeth, armature shaft worm gear, connecting rod and 23. Secure gear wheel shaft with plain washer and pin, cable rack and wheelbox gear wheels.

24. Fit larger flat washer over crankpin.

Use Shell Turbo 41 oil sparingly to lubricate bearing 25. Fit connecting rod and secure with smaller plain bushes, armature shaft bearing journals, gear wheel shaft and wheelbox spindles. Thoroughly soak felt 26. Fit gearbox cover and secure with retaining washer in yoke bearing with oil.

27. Connect electrical leads between wiper motor
18. Fit limit switch.

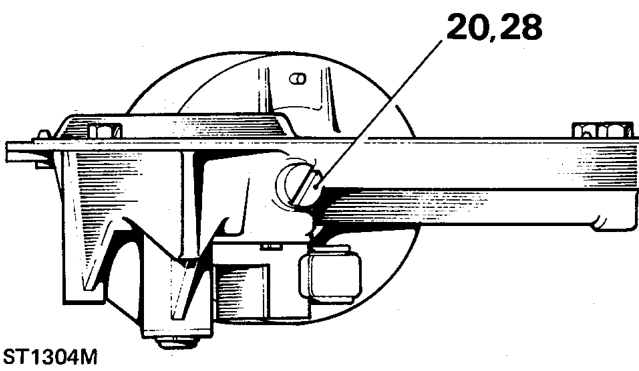

19. Fit brush gear assembly. 28. To adjust armature shaft end-float, hold yoke

20. Fit armature and yoke to gearbox using alignment marks, secure with yoke retaining bolts tightening to 23 Nm, 17 lbf/ft. If a replacement armature is being fitted slacken thrust screw to provide end-float for fitting yoke.

concave side towards gear wheel.

circlip.

washer and circlip.

screws.

and limit switch.

vertically with adjuster screw uppermost. Carefully screw in adjuster until resistance is felt, then back-off one quarter turn.
