TD5 Defender
INSTRUMENTS
1
REPAIR
INSTRUMENT PACK
Service repair no - 88.30.38
Remove

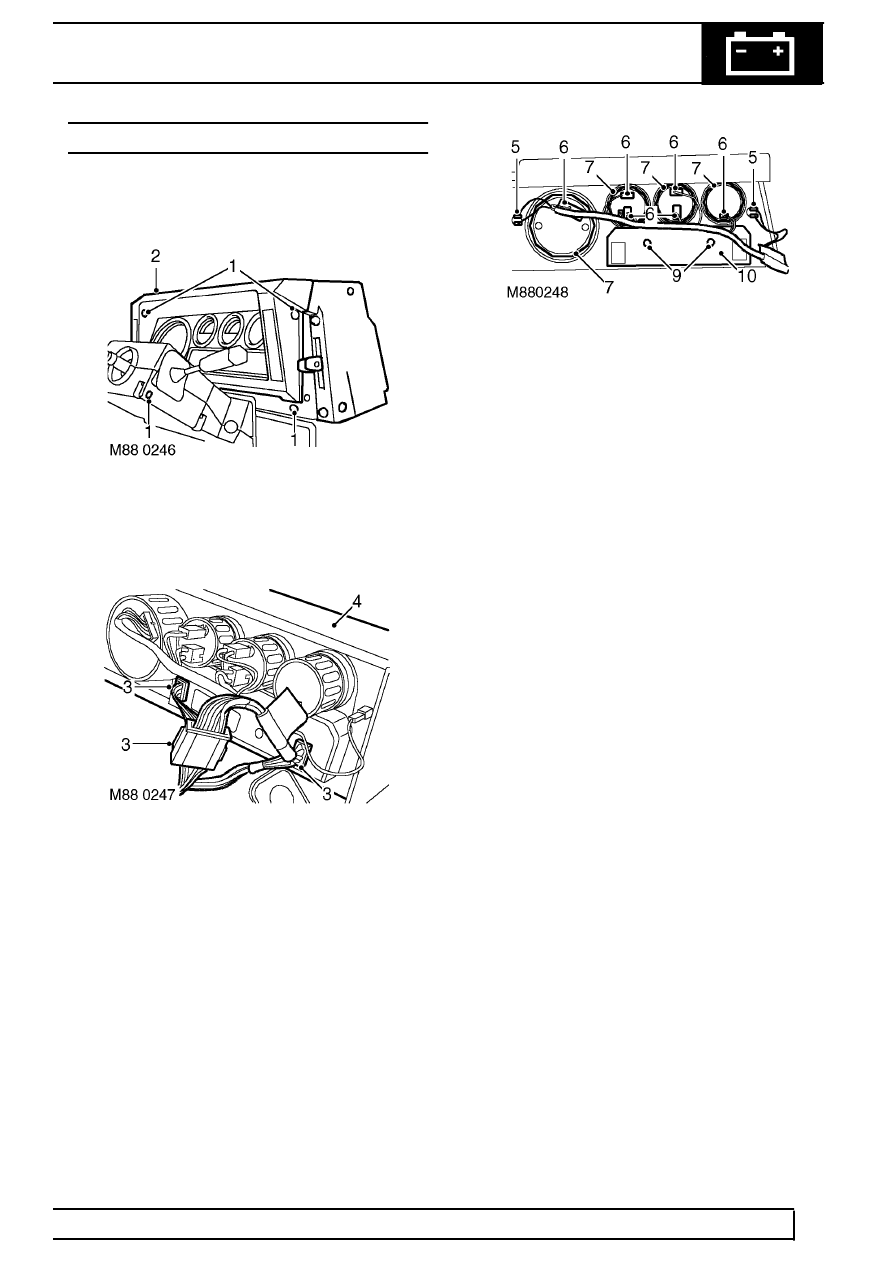

1. Remove 4 screws securing instrument pack to
fascia.
2. Release instrument pack from fascia.
3. Disconnect 3 instrument pack harness to main
harness multiplugs.
4. Remove instrument pack.
5. Disconnect 4 Lucars from left and right hand
heater controls.
6. Disconnect 7 multiplugs from rear of instrument
pack.
7. Remove clamping rings from 4 gauges.
8. Remove 4 gauges from instrument pack.
9. Remove 2 Torx screws securing warning lamp
assembly to instrument pack.
10. Remove warning lamp assembly from instrument
pack.
Refit
11. Fit warning lamp assembly to instrument pack
and secure with Torx screws.
12. Fit gauges to instrument pack and secure with
clamping rings.
13. Connect multiplugs to rear of instrument pack.
14. Connect Lucars to left and right hand heater
controls.
15. Position instrument pack to fascia and connect
instrument pack harness to main harness
multiplugs.
16. Fit instrument pack to fascia and secure with
screws.
