INTRODUCTION
5
INFORMATION
JACKING
The following instructions must be carried out before
raising the vehicle off the ground.
1. Use a solid level ground surface.
2. Apply parking brake.
3. Select 1st gear in main gearbox.
4. Select Low range in transfer gearbox.
CAUTION: To avoid damage occurring to
the under body components of the vehicle
the following jacking procedures must be
adhered to.
DO NOT POSITION JACKS OR AXLE STANDS
UNDER THE FOLLOWING COMPONENTS.
Body structure
Bumpers
Fuel lines
Brake lines
Front radius arms
Panhard rod
Steering linkage
Rear Trailing links
Fuel tank
Engine sump
Gearbox bell housing
Jack or support vehicle by axles only.
Vehicle jack
The jack provided with the vehicle is only intended to
be used in an emergency, for changing a tyre. Do
NOT use the jack for any other purpose. Refer to
Owner’s Manual for vehicle jack location points and
procedure. Never work under a vehicle supported by
the vehicle jack.
Hydraulic jack

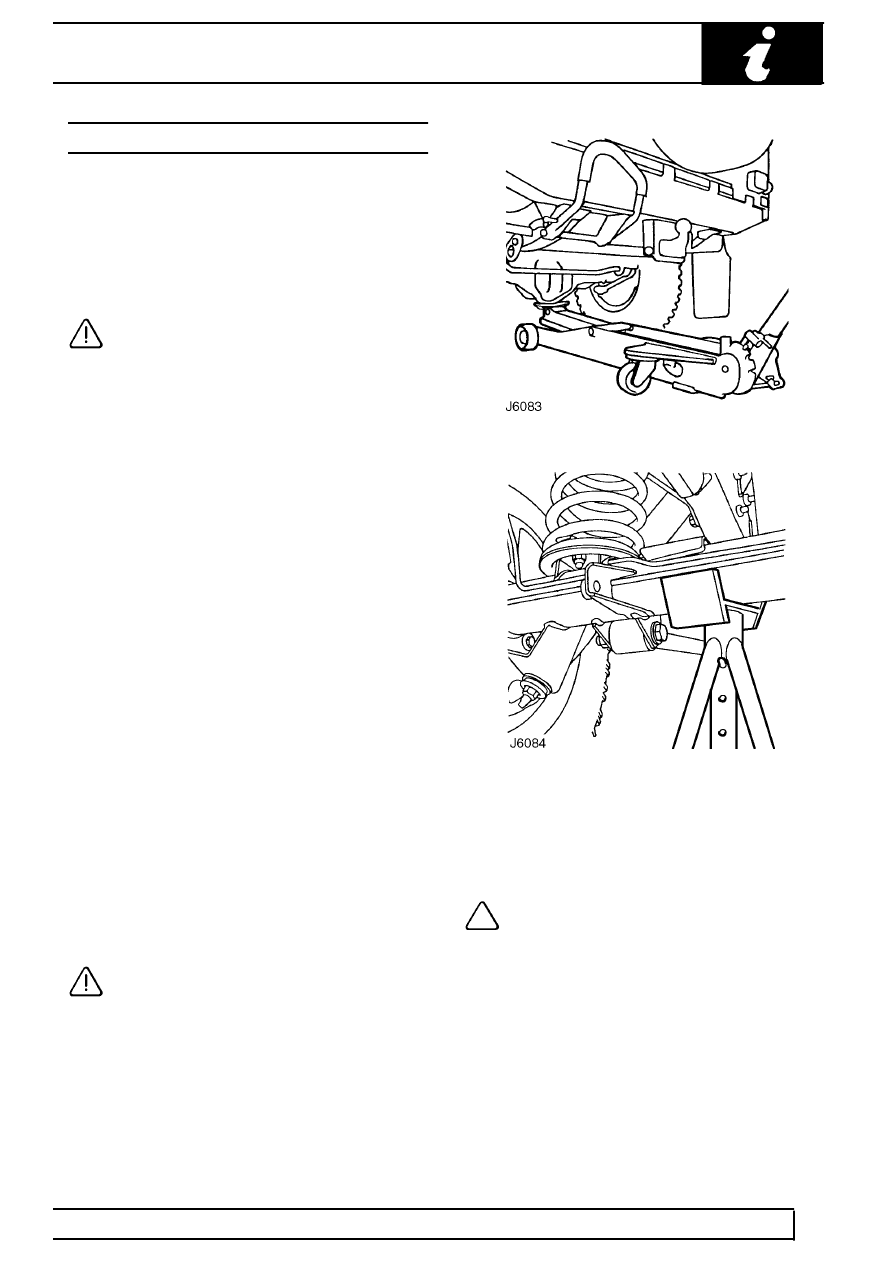

A hydraulic jack with a minimum 1500 kg, 3,300 lbs
load capacity must be used, see illustration J6083.
CAUTION: Do not commence work on the
underside of the vehicle until suitable axle
stands have been positioned under the
axle, see J6084.
Raise the front of the vehicle
1. Position cup of hydraulic arm under differential
casing.
NOTE: The differential casing is not
central to the axle. Care should be taken
when raising the front road wheels off the
ground as the rear axle has less sway stiffness.
2. Raise front road wheels to enable an axle stand
to be installed under left hand axle tube.
