Discovery II
DRIVING AIDS
86-8-6
DESCRIPTION AND OPERATION

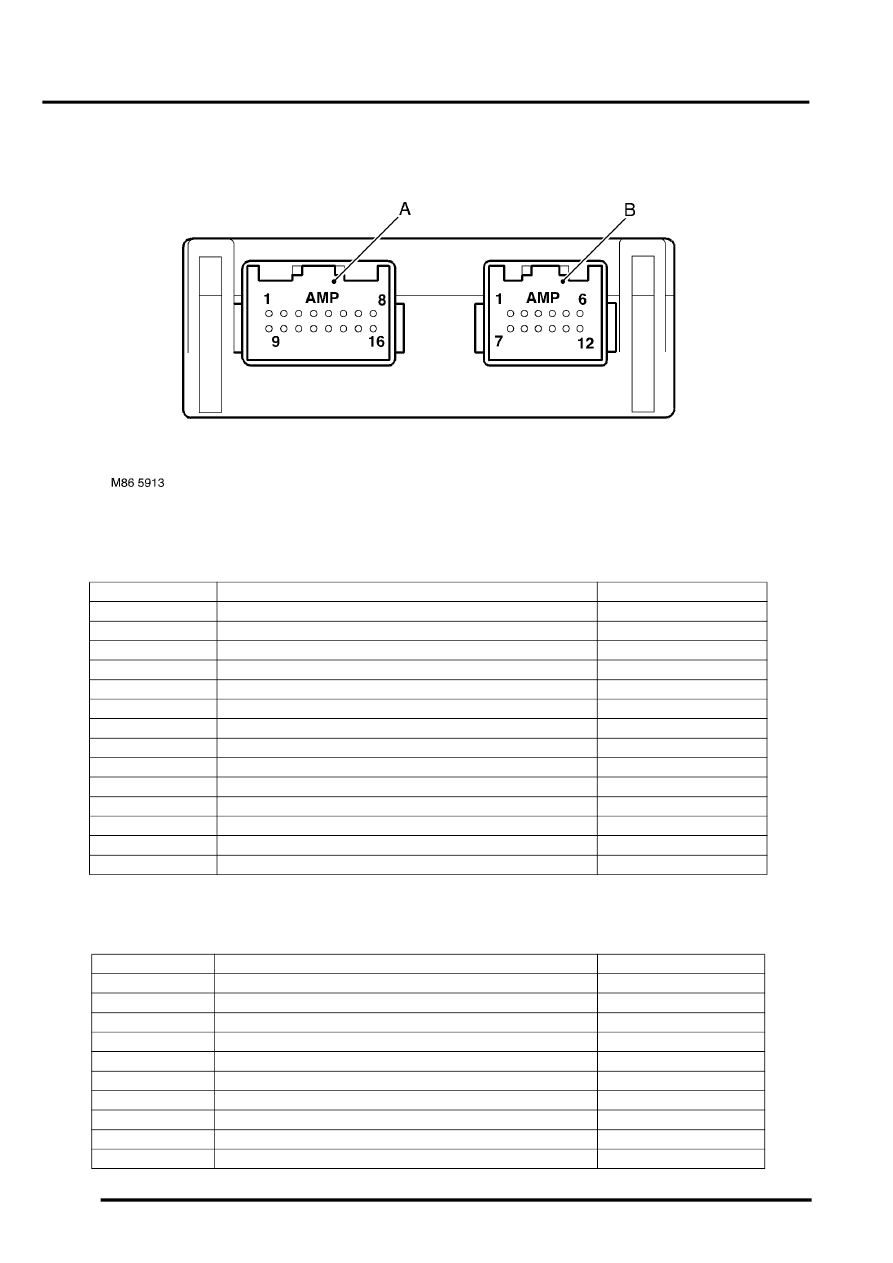

PDC ECU Connector Pin Details
a Connector C0958
b Connector C0957
Connector C0958
Connector C0957
Pin No.
Description
Input/Output
1
Ignition switch power supply
Input
2
Sounder - Negative
Input
3
Not used
–
4
PDC Switch
Input
5
Not used
–
6
Reverse Gear signal
Input
7
Not used
–
8
Ground
–
9
Not used
–
10
Sounder - Positive 12V supply
Output
11
Not used
–
12
Not used
–
13
PDC Switch LED
Output
14 to 16
Not used
–
Pin No.
Description
Input/Output
1
Not used
–
2
Sensor - RH Inner - Signal
Input
3
Sensor - Rear LH Inner - Signal
Input
4
Sensor - Rear RH Outer - Signal
Input
5
Sensor - Rear LH Outer - Signal
Input
6 and 7
Not used
–
8
Ground - All sensors
Input
9
Not used
–
10
Power Supply - All sensors
Output
11 and 12
Not used
–
