Discovery II
ENGINE - V8
DESCRIPTION AND OPERATION
12-2-5

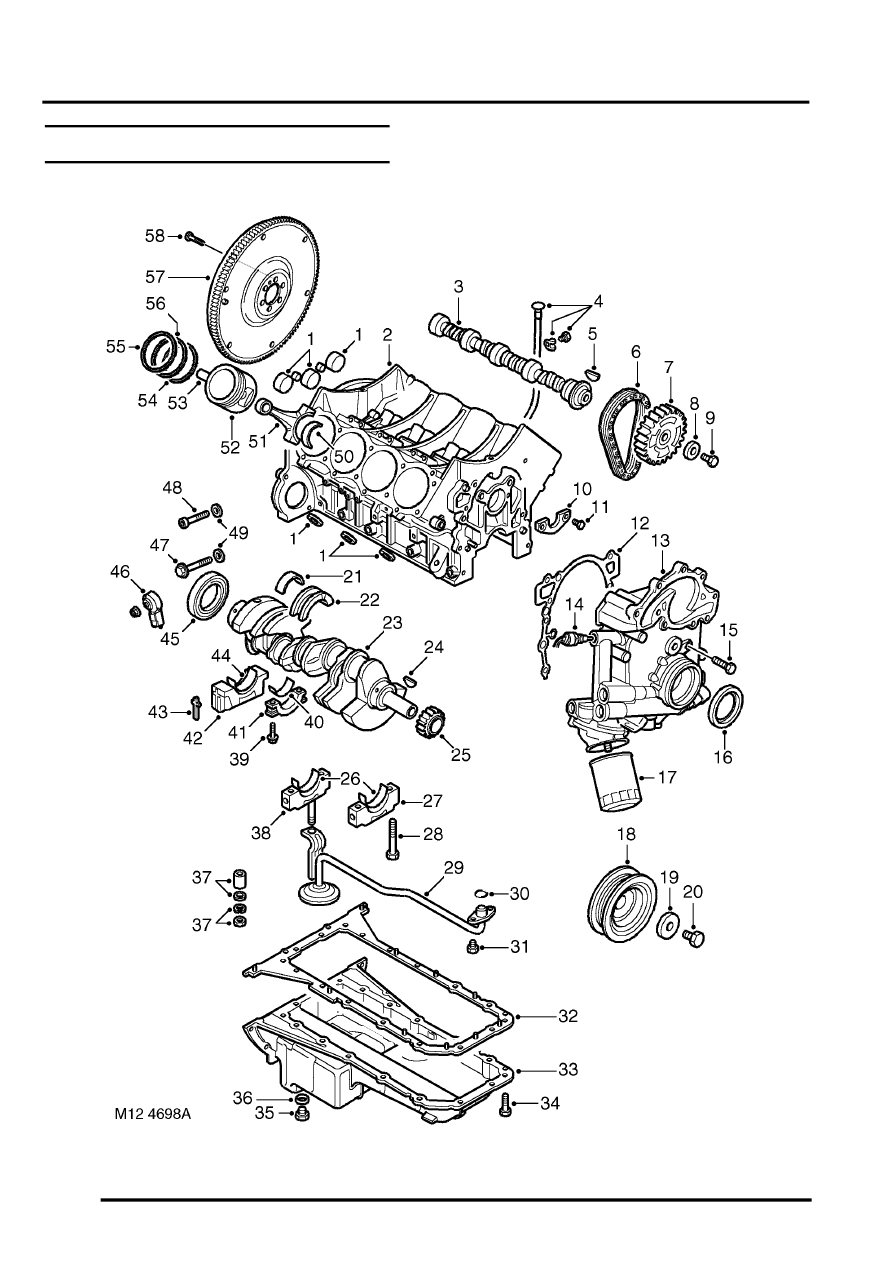

1 Core plugs
2 Cylinder block
3 Camshaft
4 Dipstick tube, clamp and bolt
5 Woodruff key
6 Timing chain
7 Camshaft timing gear
8 Washer
9 Bolt - camshaft timing gear
10 Thrust plate - camshaft end-float
11 Bolt - camshaft thrust plate
12 Gasket - timing cover
13 Timing cover
14 Oil pressure switch
15 Bolt
16 Crankshaft front oil seal
17 Oil filter element
18 Crankshaft front pulley
19 Washer
20 Bolt - crankshaft front pulley
21 Upper main bearing shell
22 Upper centre main bearing shell and thrust
washer
23 Crankshaft
24 Woodruff key
25 Crankshaft timing gear
26 Lower main bearing shells
27 Numbers 1, 2 and 3 main bearing caps
28 Bolt - main bearing caps
29 Oil pick-up pipe and strainer
30 'O' ring
31 Bolt - oil pick-up pipe
32 Gasket - sump
33 Sump
34 Bolt - sump
35 Sump oil drain plug
36 Sealing washer
37 Spacer, washers and nut - oil pick-up pipe
38 Number 4 main bearing cap
39 Bolt - connecting rod big-end bearing cap
40 Connecting rod big-end bearing shell - lower
41 Connecting rod big-end bearing cap
42 Number 5 - rear main bearing cap
43 Cruciform seal - rear main bearing cap
44 Number 5 - rear main bearing shell
45 Crankshaft rear oil seal
46 Crankshaft knock sensor
47 Side bolt - main bearing cap
48 Side Allen bolt - main bearing cap
49 Dowty washers
50 Connecting rod big-end bearing shell - upper
51 Connecting rod
52 Piston
53 Gudgeon pin
54 Oil control ring
55 Top compression ring
56 2nd compression ring
57 Flywheel/drive plate and starter ring gear
58 Bolt - flywheel/drive plate
