FUEL DELIVERY SYSTEM - V8

REPAIRS 19-2-13

REPAIRS

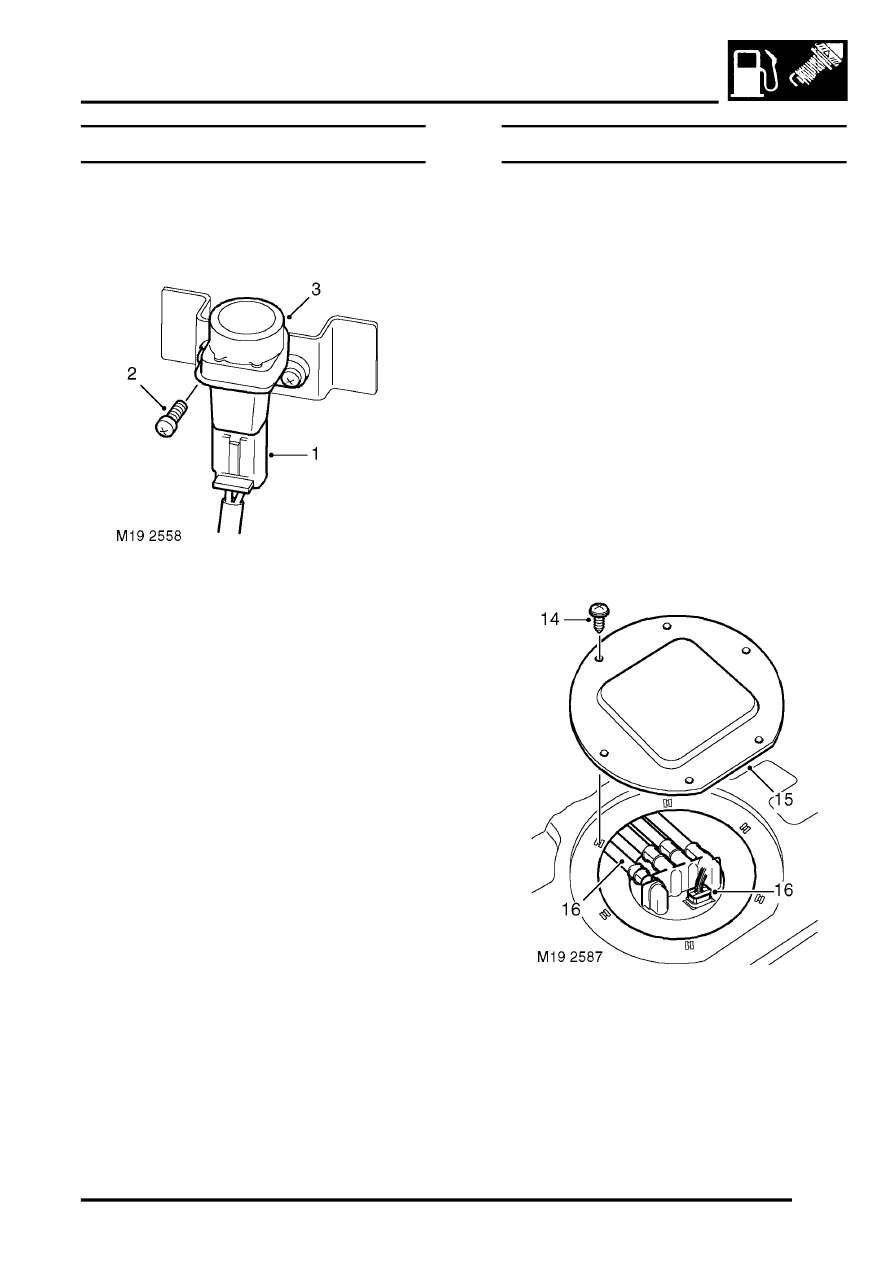

Switch - inertia - fuel cut-off

$% 19.22.09

Remove

1. Disconnect multiplug from fuel cut-off switch.
2. Remove 2 screws securing fuel cut-off switch to

bulkhead.

3. Remove fuel cut-off switch from bulkhead.

Refit

1. Position fuel cut-off switch to bulkhead and

secure with screws.

2. Connect multiplug to fuel cut-off switch.
3. To set the fuel cut-off switch, depress the top of

the fuel cut-off switch.

Pump - fuel

$% 19.45.08

NOTE: The fuel pump and fuel gauge tank unit are
integral parts of the fuel pump housing and cannot be
renewed separately

Remove

1. Release fixings and remove battery  cover.
2. Disconnect battery earth lead.
3. Models with third row seats:  Remove RH

third row seat.


 +

 SEATS, REPAIRS, Seat - third row.

4.  Remove right hand rear lower quarter trim

casing.


 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - side - loadspace.

5. Models with third row seats:  Remove 4

screws securing third row seat latch finishers to
body and finishers.

6. Release and remove screw cover from rear

floor carpet finisher.

7. Remove 6 screws securing loadspace carpet

finisher, remove finisher.

8. Release carpet and tie aside.
