Discovery II
INSTRUMENTS
88-28
DESCRIPTION AND OPERATION
Glow plug warning lamp

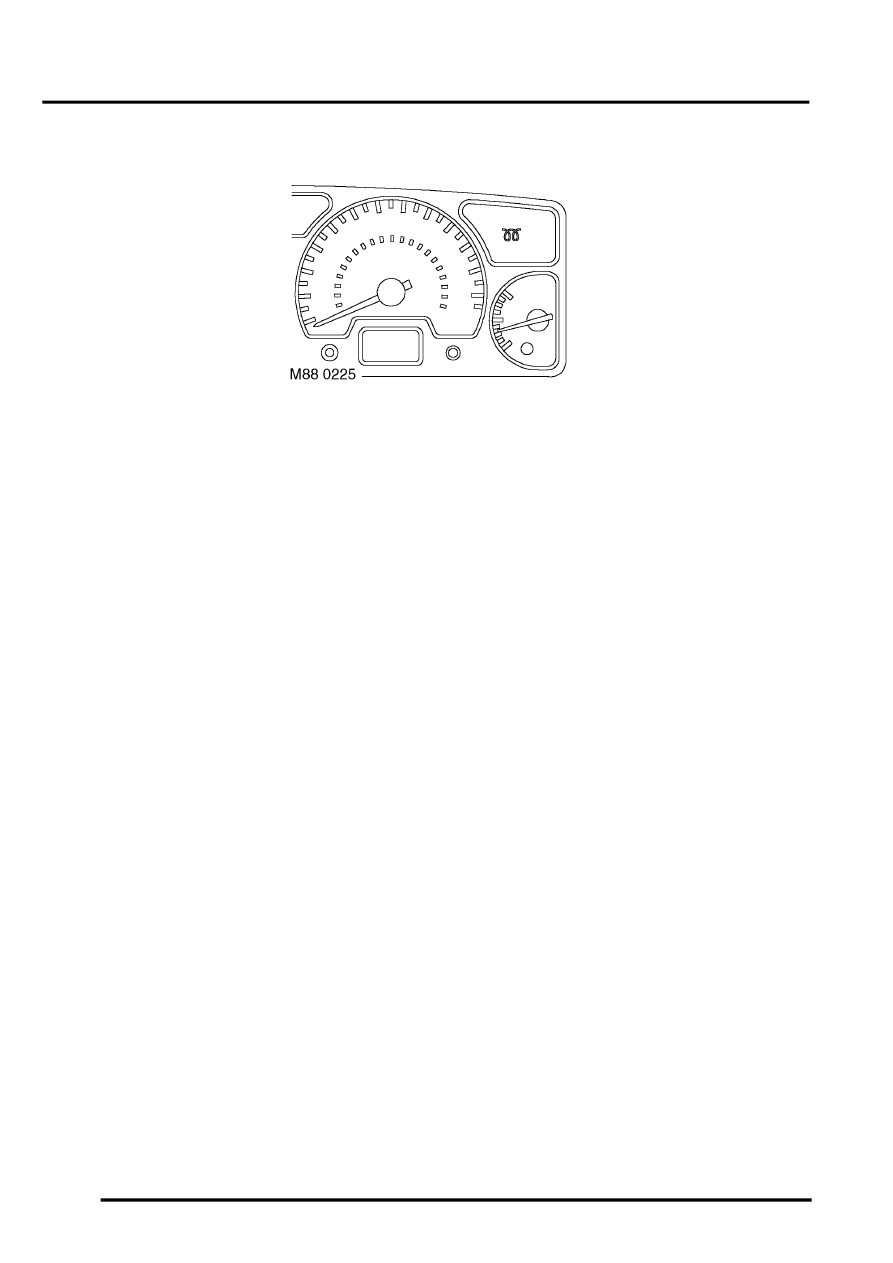

The glow plug warning lamp within the instrument pack utilises an amber LED and a clear legend. On vehicles with
diesel engines the LED illuminates when the ECM operates the glow plugs. After a predetermined time calculated by
the ECM, dependent on engine temperature, the LED is switched off providing the driver with a visible warning that
the engine can be started.
The power input for the LED is supplied by the instrument pack via fuse 27. The ECM provides the earth path to
illuminate the warning lamp.
The voltage on the earth path from the ECM to the instrument pack is as follows:
l
< 1.8 volts = warning lamp on.
l
> 7.7 volts = warning lamp off.
