Discovery II
SUNROOF
76-6-12 DESCRIPTION AND OPERATION

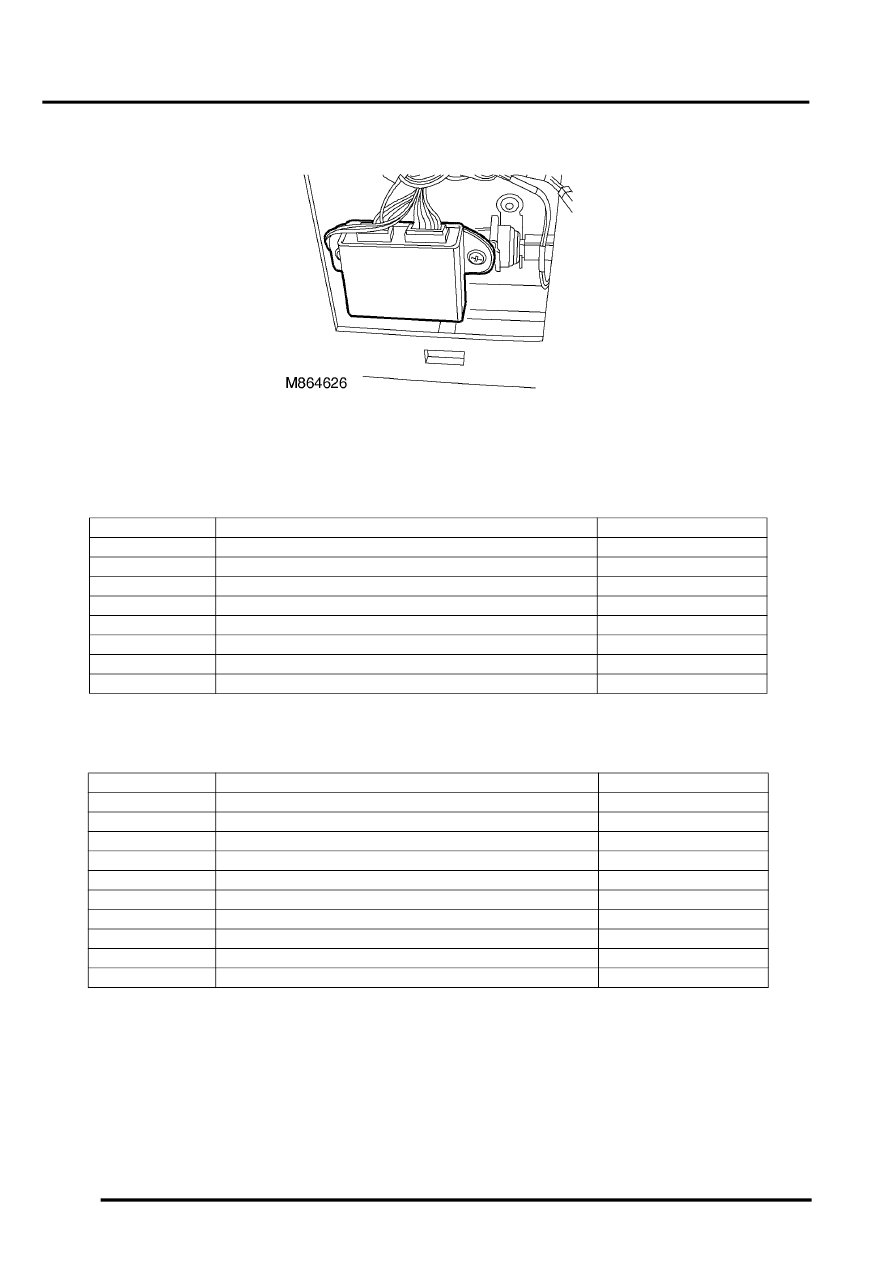

Sunroof ECU
The sunroof ECU is located behind the head lining above the rear view mirror. Most functions of the sunroof ECU are
covered under other components.
Sunroof ECU connector pin details - C0784
Sunroof ECU connector pin details - C0785
Pin No.
Description
Input/Output
1
Rear sunroof microswitch
Input
2
Front sunroof switch - open
Input
3
Not used
-
4
Sunroof microswitches - common
Input
5
Not used
-
6
Rear sunroof, rear switch - open
Input
7
Rear sunroof, front switch - open
Input
8
Front sunroof microswitch
Input
Pin No.
Description
Input/Output
1
Front sunroof motor forward
Output
2
ECU earth
Input
3
Battery power supply
Input
4
Rear sunroof motor backwards
Output
5
Front sunroof motor backwards
Output
6
Rear sunroof motor forwards
Output
7
Front sunroof switch - close
Input
8
Rear sunroof, front switch - close
Input
9
Rear sunroof, rear switch - close
Input
10
Sunroof enable
Input
