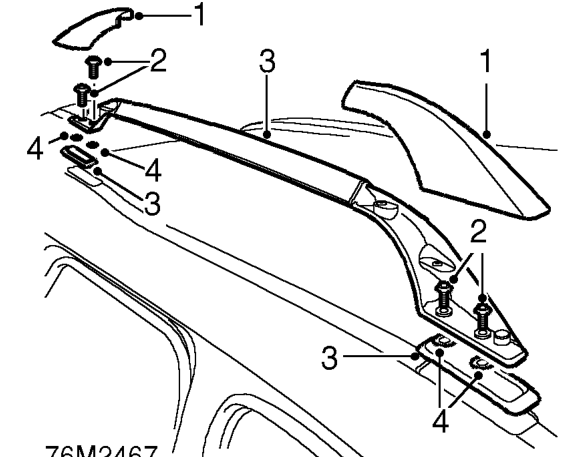

Side rail - roof rack - 5 door

SIDE RAIL - ROOF RACK - 5 DOOR

Service repair no - 76.11.30

Remove

1. Remove finishers from feet of side rail.
2. Unscrew 4 Torx bolts securing side rail to roof panel.
3. Remove side rail and 2 gaskets. Do not carry out further dismantling if component is removed for access only.
4. Remove seal from each Torx bolt.
5. Remove Torx bolts from side rail.
6. Fit Torx bolts and seals to replacement side rail.

Refit

1. Fit gaskets to side rail.
2. Position side rail and tighten Torx bolts to 22 Nm.
3. Fit finishers to feet of side rail.

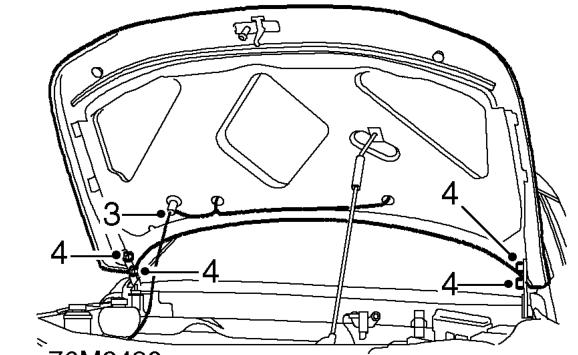

BONNET

Service repair no - 76.16.01/99

Remove

1. Support bonnet in open position.
2. Fit protection covers to wings and mark hinge outline on bonnet if bonnet is to be refitted.

3. Disconnect windscreen washer tube at elbow joint.
4. With assistance, remove bolts securing bonnet and remove bonnet.

Refit

1. With assistance, position bonnet and align hinges to marks on bonnet.
2. Lightly tighten bolts.
3. Connect windscreen washer tube.
4. Close bonnet to safety catch position, check that bonnet is aligned to both front wings and that gaps are equal.
5. Finally tighten hinge bolts to 9 Nm.
