BodyVent - rear quarter

VENT - REAR QUARTER

Service repair no - 76.81.24

Remove

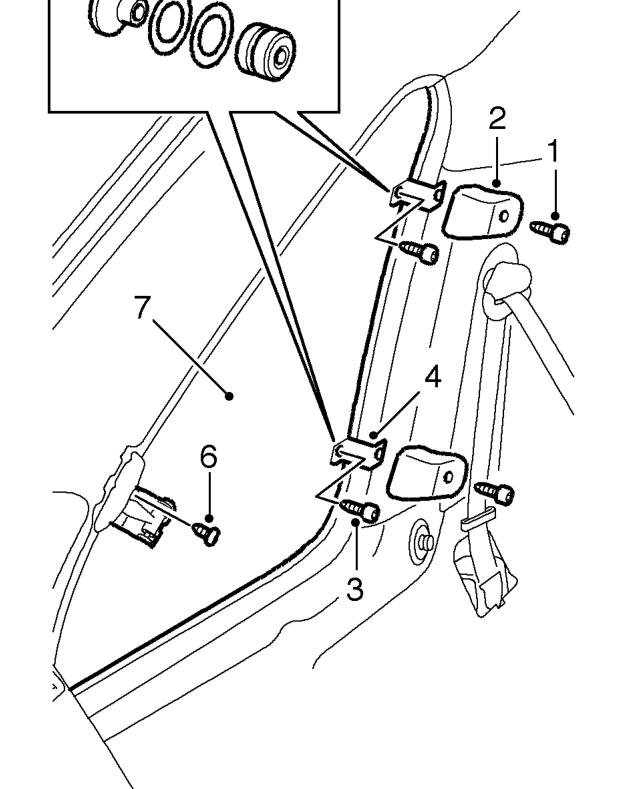

Vent - rear quarter – Service repair no - 76.81.24
  1. Remove 2 Torx screws securing vent hinge covers.
  2. Remove covers from hinges.
  3. Remove 2 screws securing hinges to vent.
  4. Remove hinges from vent.
  5. Remove nuts from vent and discard sealing washers.
  6. With assistance remove screw securing vent catch to body.
  7. Remove vent.

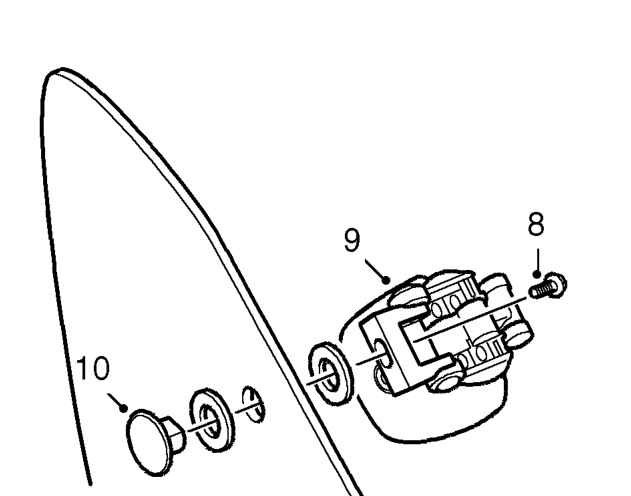

Vent - rear quarter – Remove vent.
  1. Remove screw securing catch to vent.
  2. Remove catch from vent.
  3. Remove nut from vent and discard sealing washers.

Refit

  1. Fit nut and NEW sealing washer to vent.
  2. Fit catch and tighten screw.
  3. With assistance fit vent and tighten catch screw.
  4. Using NEW sealing washers fit nuts and hinges to vent. Fit and tighten hinge screws to vent.
  5. Fit hinge covers and tighten Torx screws.
