Land Rover Freelander Workshop Manual (1998-2000)02 · General information
02 · General

Deployment of pre-tensioner (page 2 of 2)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
SRS precautions
General informationDeployment of pre-tensioner · page 2 of 2

WARNING: Ensure pre-tensioner is secured tightly to seat.

WARNING: Ensure all personnel are standing at least 15 metres away from vehicle.

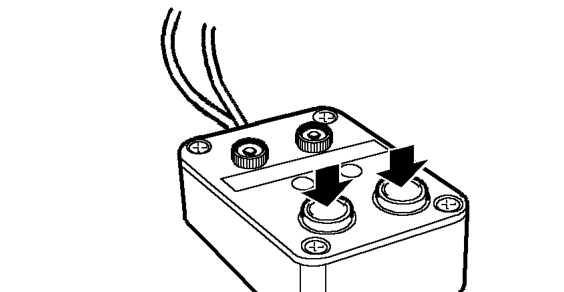

  1. Connect tool SMD 4082/1 to battery.
Connect tool SMD 4082/1 to battery.
  1. Press both operating buttons to deploy pre-tensioner.
  2. Wearing gloves, disconnect flylead SMD 4082/30 from pre-tensioner connector and remove pre-tensioner from seat. Place pre-tensioner in plastic bag and seal bag.
  3. Transport deployed pre-tensioner to designated area for incineration.

NOTE: DO NOT transport pre-tensioner in the vehicle passenger compartment.

  1. If the vehicle is being scrapped, scrap all remaining parts of airbag system. DO NOT re-use or salvage any parts of the airbag system.
