EXHAUST PIPE - INTERMEDIATE

Service repair no - 30.10.11

Remove

  1. Raise vehicle on 4 post ramp.

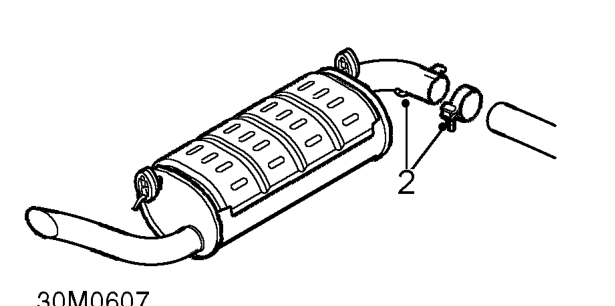

Exhaust pipe - intermediate – Raise vehicle on 4 post ramp.
  1. Loosen tail pipe clamp nut and release tail pipe from intermediate pipe.

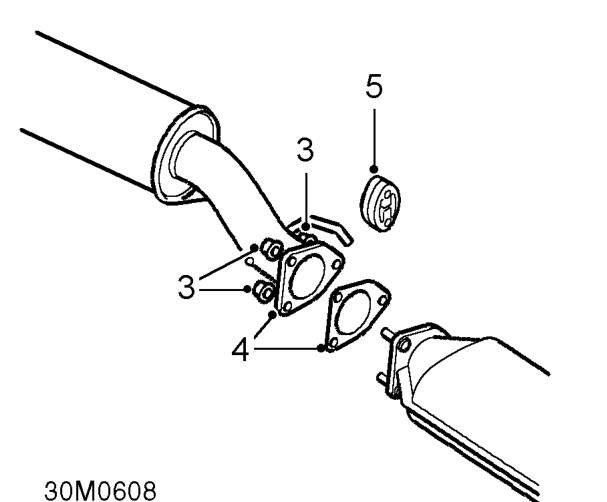

Exhaust pipe - intermediate – Loosen tail pipe clamp nut and release tail pipe from intermediate pipe.
  1. Remove 3 nuts securing intermediate pipe to catalytic converter.
  2. Release intermediate pipe from catalytic converter. Remove and discard gasket.
  3. Release rubber mounting from intermediate pipe.
  4. With assistance release and remove intermediate pipe.

Refit

  1. Clean mating faces of intermediate pipe, catalytic converter and tail pipe.
  2. Fit NEW gasket to catalytic converter flange.
  3. With assistance fit intermediate pipe to tail pipe and connect to catalytic converter flange.
  4. Fit nuts and tighten intermediate pipe flange nuts to 60 Nm.
  5. Tighten tail pipe clamp nut to 55 Nm .
  6. Connect mounting rubbers.
  7. Lower vehicle.
