GASKET - INLET AND EXHAUST MANIFOLD - ’L’ SERIES

Service repair no - 30.15.15

Remove

  1. Disconnect battery earth lead.
  2. Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS - ’L’ SERIES, Repairs.
  3. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Adjustments.
  4. Loosen clip and disconnect breather hose from camshaft cover.
Gasket - inlet and exhaust manifold - ’l’ series – Loosen clip and disconnect breather hose from camshaft cover.

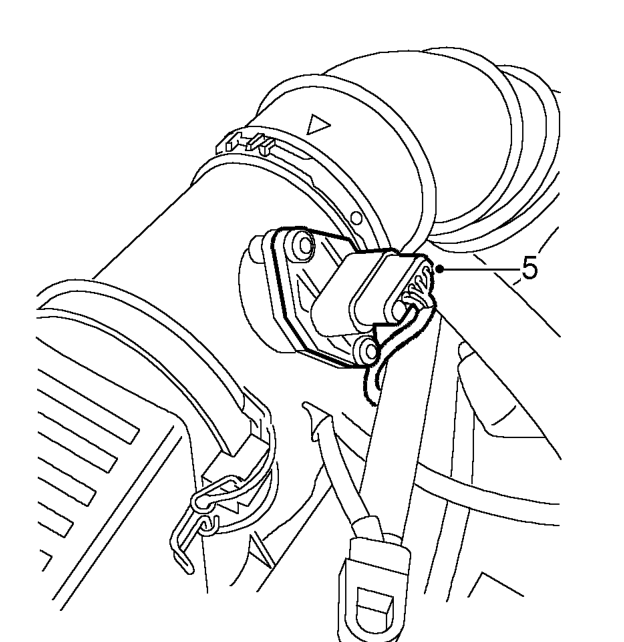

  1. Disconnect multiplug from MAF sensor.
Gasket - inlet and exhaust manifold - ’l’ series – Disconnect multiplug from MAF sensor.

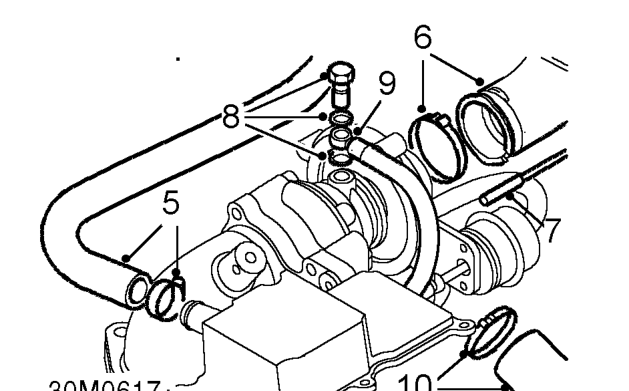

  1. Release clip and remove air intake hose from turbocharger.
  2. Release clip and disconnect boost pressure sensing pipe from turbocharger.
  3. Remove banjo bolt securing oil feed pipe to turbocharger, collect 2 sealing washers.
  4. Plug oil feed pipe and turbocharger.
  5. Loosen clip screw and release air outlet hose from turbocharger.
Gasket - inlet and exhaust manifold - ’l’ series – Loosen clip screw and release air outlet hose from turbocharger.

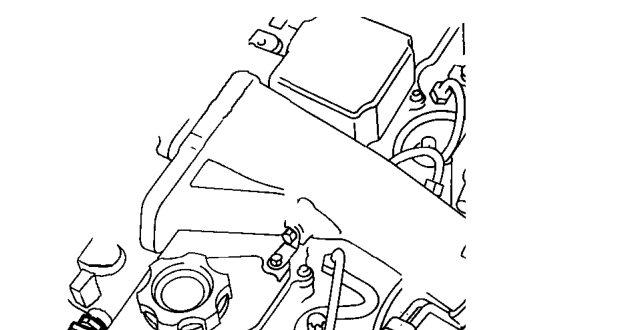

  1. Disconnect multiplug from IAT sensor.
