Land Rover Freelander Workshop Manual (1998-2000)13 · Manifold & exhaust systems
13 · Engine

Gasket - inlet and exhaust manifold - ’l’ series (page 2 of 3)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Manifold & exhaust systemsGasket - inlet and exhaust manifold - ’l’ series · page 2 of 3

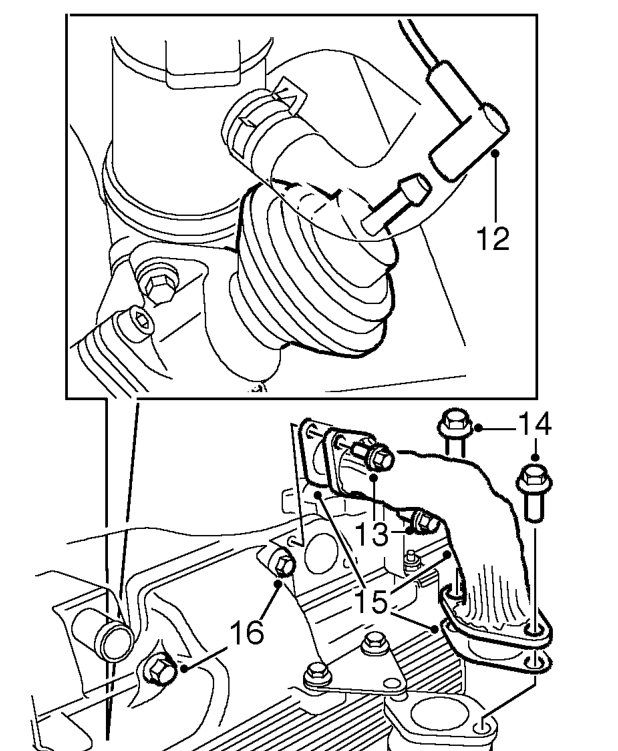

Diagram
  1. Disconnect vacuum pipe from EGR valve.
  2. Remove 2 bolts securing EGR recirculation pipe to plenum chamber.
  3. Remove 2 bolts securing EGR recirculation pipe to EGR valve elbow.
  4. Release recirculation pipe and discard gasket.
  5. Remove 2 bolts securing inlet manifold to plenum chamber.
  6. Remove and discard gasket.
Remove and discard gasket.

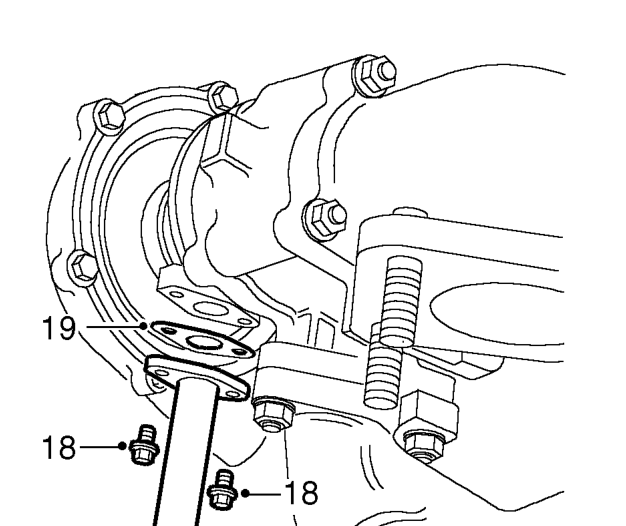

  1. Remove 2 bolts securing oil drain pipe flange to turbocharger.
  2. Remove and discard gasket.
Remove and discard gasket.

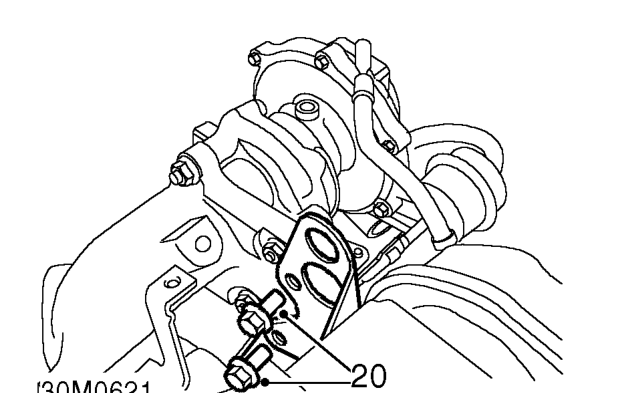

  1. Remove 2 bolts securing exhaust manifold to engine lifting bracket.
