GASKET - INLET MANIFOLD - ’K’ SERIES

Service repair no - 30.15.08

Remove

  1. Disconnect battery earth lead.
  2. Drain cooling system. See COOLING SYSTEM, Adjustments.
  3. Remove air filter. See ENGINE MANAGEMENT SYSTEM - MEMS, Adjustments.

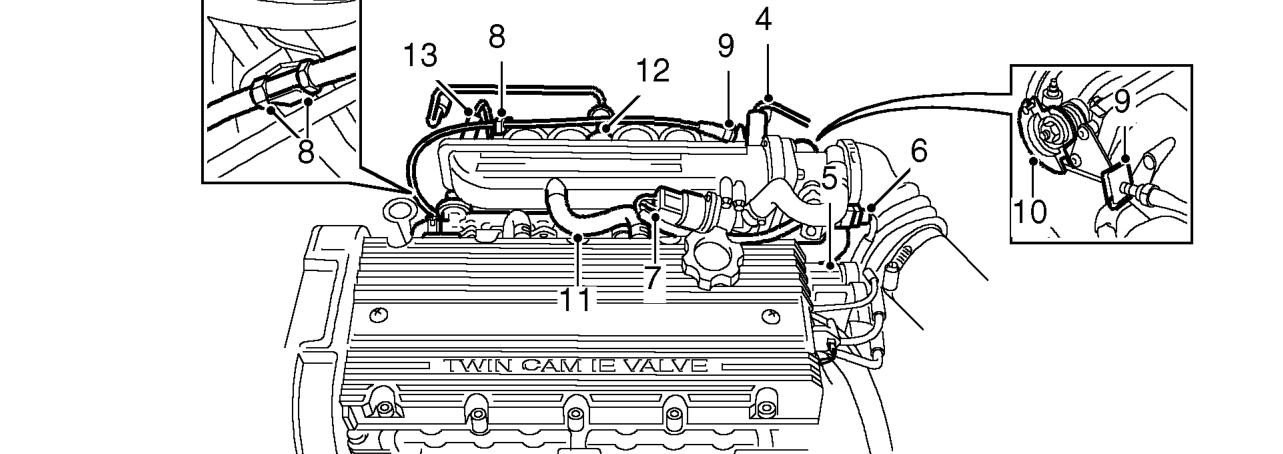

Gasket - inlet manifold - ’k’ series – Remove air filter. See ENGINE MANAGEMENT SYSTEM - MEMS, Adjustments.
  1. Disconnect purge valve hose from inlet manifold.
  2. Release clip and disconnect breather hose from throttle body.
  3. Disconnect multiplug from TP sensor.
  4. Disconnect multiplug from IACV.
  5. Release throttle cable from clip on manifold.
  6. Release throttle cable adjusting nut from abutment bracket.
  7. Release inner cable from throttle cam.
  8. Disconnect breather hose from inlet manifold.
  9. Depress plastic collar and disconnect brake servo hose from inlet manifold.
  10. Disconnect ECM vacuum hose from manifold.
