Land Rover Freelander Workshop Manual (1998-2000)13 · Manifold & exhaust systems
13 · Engine

Gasket - inlet manifold - ’k’ series (page 2 of 2)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Manifold & exhaust systemsGasket - inlet manifold - ’k’ series · page 2 of 2

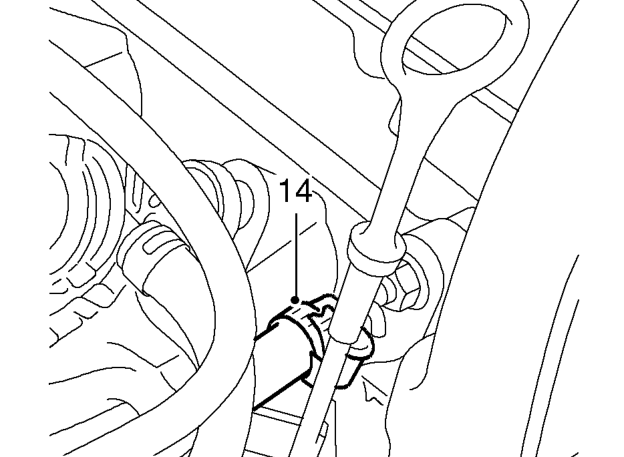

Diagram
  1. Release clip and disconnect coolant hose from inlet manifold.

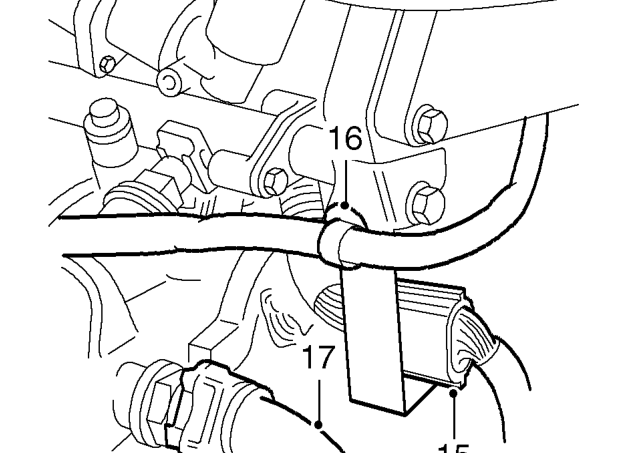

Release clip and disconnect coolant hose from inlet manifold.
  1. Release injector harness multiplug from bracket and disconnect multiplug.
  2. Release clip securing engine harness to inlet manifold bracket.
  3. Disconnect multiplug from Intake Air Temperature (IAT) sensor.
  4. Position absorbent cloth beneath fuel rail.

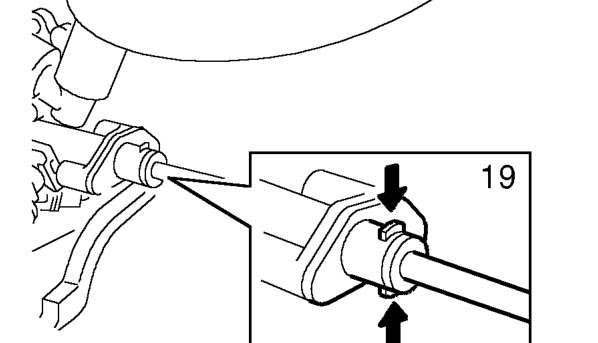

Position absorbent cloth beneath fuel rail.
  1. Release fuel feed pipe from fuel rail.

CAUTION: Plug the connections.

  1. Working from the centre outwards, progressively slacken then remove 3 nuts and 4 bolts securing inlet manifold to cylinder head.
  2. Remove inlet manifold, remove and discard gasket.

Refit

  1. Ensure mating surfaces are clean and metal inserts are fitted in inlet manifold stud and bolt holes.
  2. Fit NEW gasket to inlet manifold.

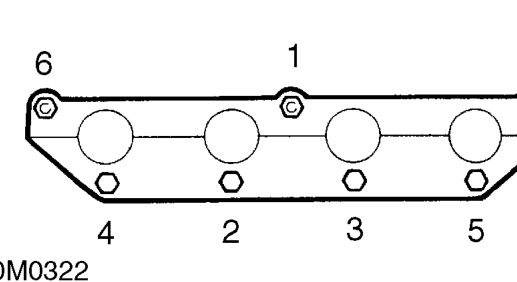

Fit NEW gasket to inlet manifold.
  1. Fit inlet manifold, fit bolts and nuts and tighten to 17 Nm in the sequence shown.
