Transfer box - IRDDiesel models
  1. Release propeller shaft from IRD drive flange and tie shaft to one side.

CAUTION: Care must be taken to support the Tripode joint when removed from the IRD unit. The joint must not be allowed to fully extend or be dropped as this could damage the joint and reduce its service life.

Diesel models

  1. Remove 5 nuts securing IRD pinion housing to IRD main casing.

Petrol models

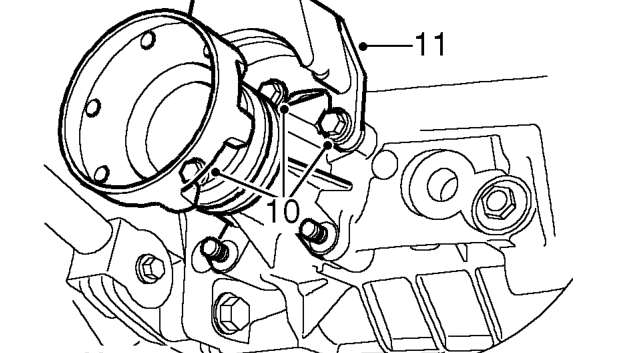

Petrol models – Remove 5 nuts securing IRD pinion housing to IRD main casing.
  1. Remove 3 remaining nuts securing mass damper and IRD pinion housing to IRD main case.
  2. Remove mass damper from IRD pinion housing.

All models

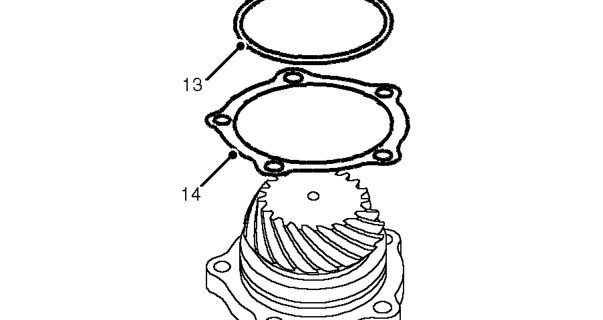

All models – Remove mass damper from IRD pinion housing.
  1. Remove pinion housing from IRD.
  2. Remove and discard ’O’ ring from pinion housing.
  3. Remove and retain spacing washer.
