Transfer box - IRDDiesel Models

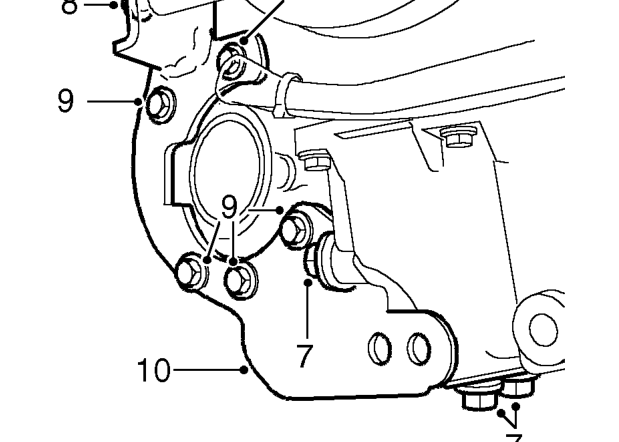

Diagram
  1. Remove 3 bolts securing IRD support bracket to sump.
  2. Remove bolt securing IRD support bracket to PAS pump bracket.
  3. Remove 5 bolts securing support bracket to IRD.
  4. Remove IRD support bracket.

Diesel Models

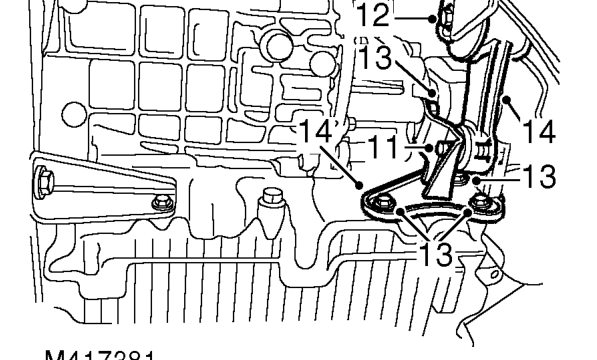

Diesel models – Remove IRD support bracket.
  1. Loosen bolt securing engine lower tie bar to bracket on sump.
  2. Remove bolt securing engine lower tie bar to subframe.
  3. Remove 6 bolts securing lower tie bar bracket to sump and IRD.
  4. Remove lower tie bar with bracket.

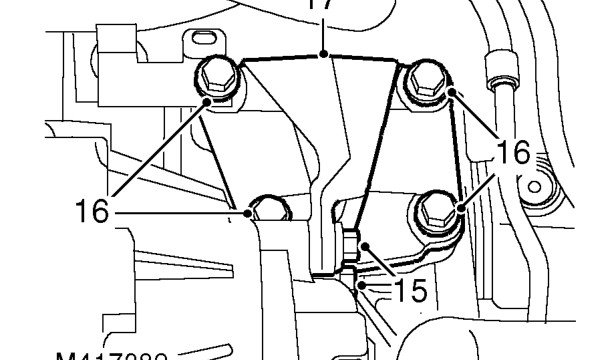

Diesel models – Remove lower tie bar with bracket.
  1. Remove 2 bolts securing support bracket to IRD.
  2. Remove 4 bolts securing IRD support bracket to cylinder block.
  3. Remove IRD support bracket.
