Land Rover Freelander Workshop Manual (1998-2000)16 · Transfer box - IRD
16 · General

’K’ series

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › ’K’ series
Transfer box - IRD’K’ series

’K’ series

  1. Fit exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

All models

  1. Fit RH drive shaft. See DRIVE SHAFTS, Repairs.
  2. Fill IRD unit with lubricating fluid. See MAINTENANCE.
  3. Fill gearbox with lubricating fluid. See MAINTENANCE.
  4. Fill cooling system. See COOLING SYSTEM, Adjustments.

SEAL - DRIVE SHAFT - FRONT LH

Service repair no - 41.29.08

Remove

  1. Remove LH drive shaft. See DRIVE SHAFTS, Repairs.
  2. Remove and discard drive shaft oil seal.

Refit

  1. Thoroughly clean oil seal recess.
  2. Lubricate NEW oil seal with gearbox oil.

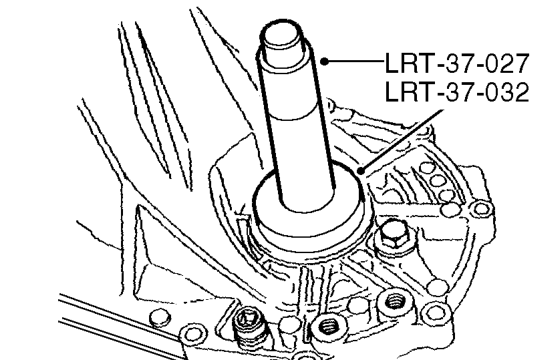

Seal - drive shaft - front lh – Lubricate NEW oil seal with gearbox oil.
  1. Locate seal on tool LRT-37-032 and replacer LRT-37-027 with sealing lip facing toward housing.
  2. Carefully drift oil seal into gearbox housing until it is fully seated in recess.
  3. Fit drive shaft. See DRIVE SHAFTS, Repairs.
