Land Rover Freelander Workshop Manual (1998-2000)16 · Transfer box - IRD
16 · General

’K’ series

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › ’K’ series
Transfer box - IRD’K’ series

’K’ series

’k’ series

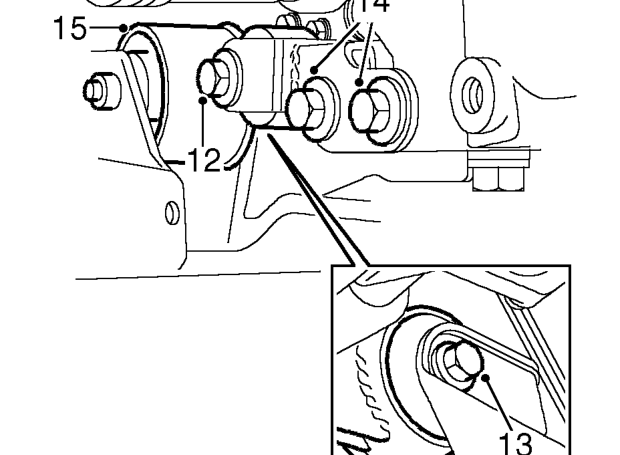

  1. Loosen bolt securing engine lower tie bar to bracket on sump.
  2. Remove bolt securing tie bar to subframe.
  3. Remove 2 bolts securing tie bar to sump.
  4. Remove tie bar.

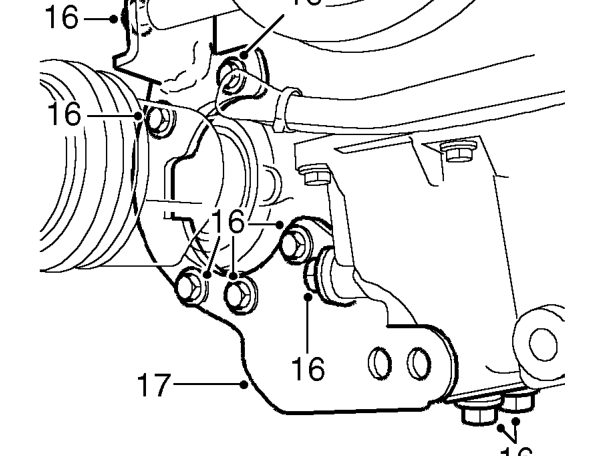

’k’ series – Remove tie bar.
  1. Remove 9 bolts securing IRD support bracket.
  2. Remove IRD support bracket.

L Series

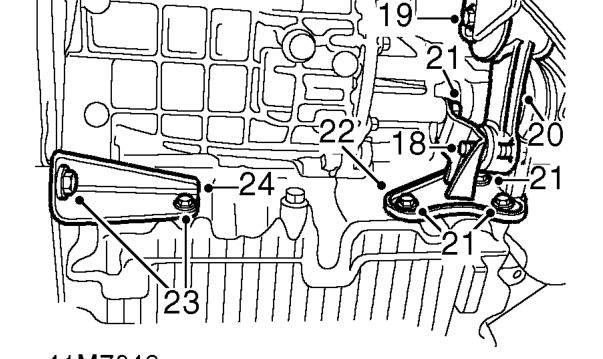

L series – Remove IRD support bracket.
  1. Remove bolt securing engine lower tie bar to bracket on sump.
  2. Remove bolt securing engine tie bar to subframe
  3. Remove tie bar.
  4. Remove 4 bolts securing tie bar bracket to IRD unit and sump.
  5. Remove bracket.
  6. Remove 2 bolts securing stiffener bracket to gearbox adaptor plate and sump.
  7. Remove bracket.

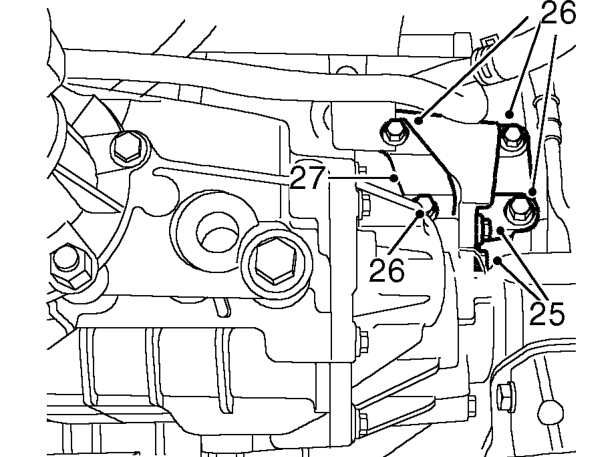

L series – Remove bracket.
  1. Remove 2 bolts securing support bracket to IRD unit.
  2. Remove 4 bolts securing support bracket to cylinder block.
  3. Remove IRD support bracket.
