L322 Range Rover System Description and Operation
ENTERTAINMENT AND INFORMATION SYSTEMS
DESCRIPTION AND OPERATION 86-8-79

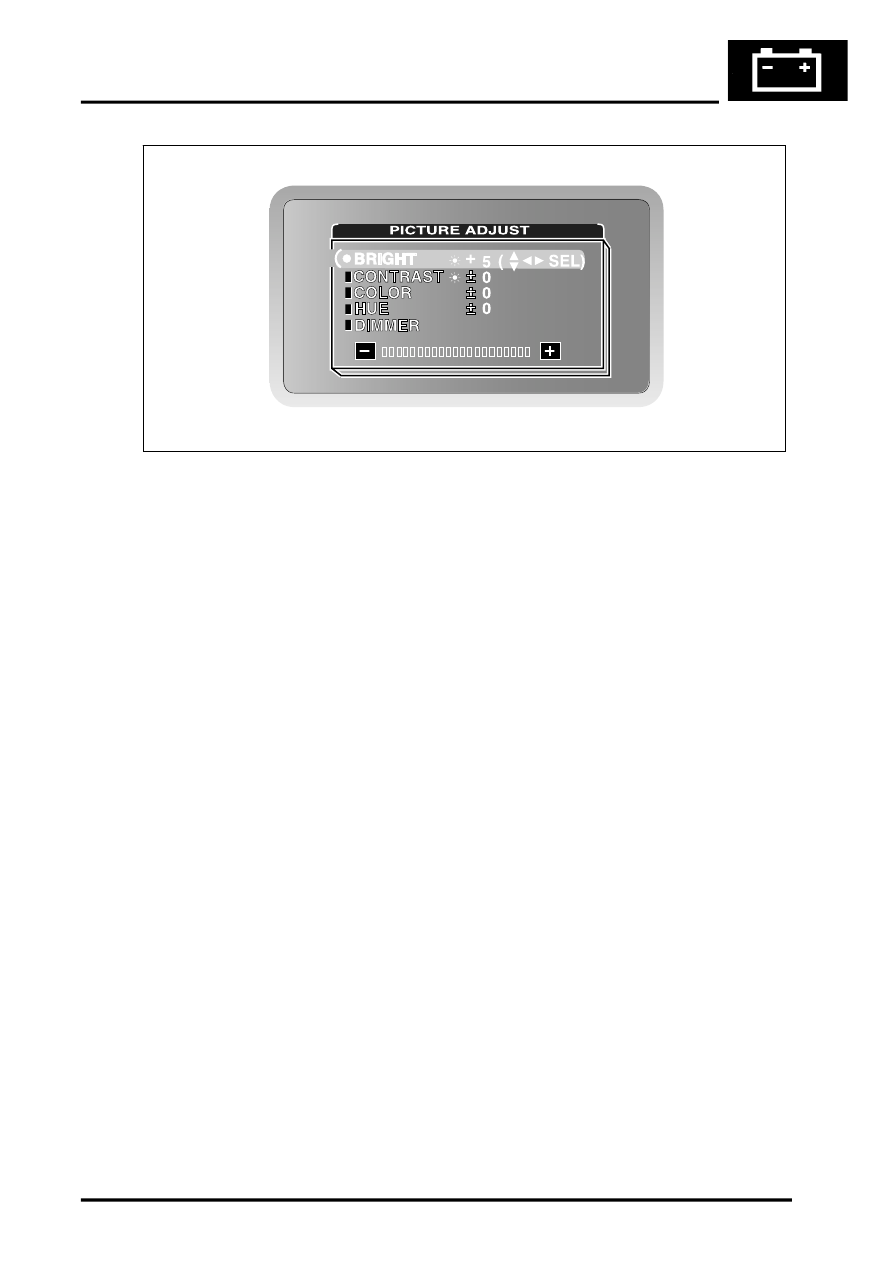

Picture Adjustment Menu
Volume Buttons
The volume buttons are used to scroll up and down adjustment menus. As the audio signals are not routed to the
screen, but to the audio interface and the headphone driver units, the volume buttons have no effect on the audio
output of this system.
Adjustment Buttons
The adjustment buttons are used to change the values in adjustment menus.
Power Button
The power button switches the LCD screen on and off.
Screen Driver Units
Two screen driver units, one for each LCD screen, are installed under the driver's seat.
M86 6104
