L322 Range Rover Service Procedures
ENGINE - V8
12-2-70 REPAIRS

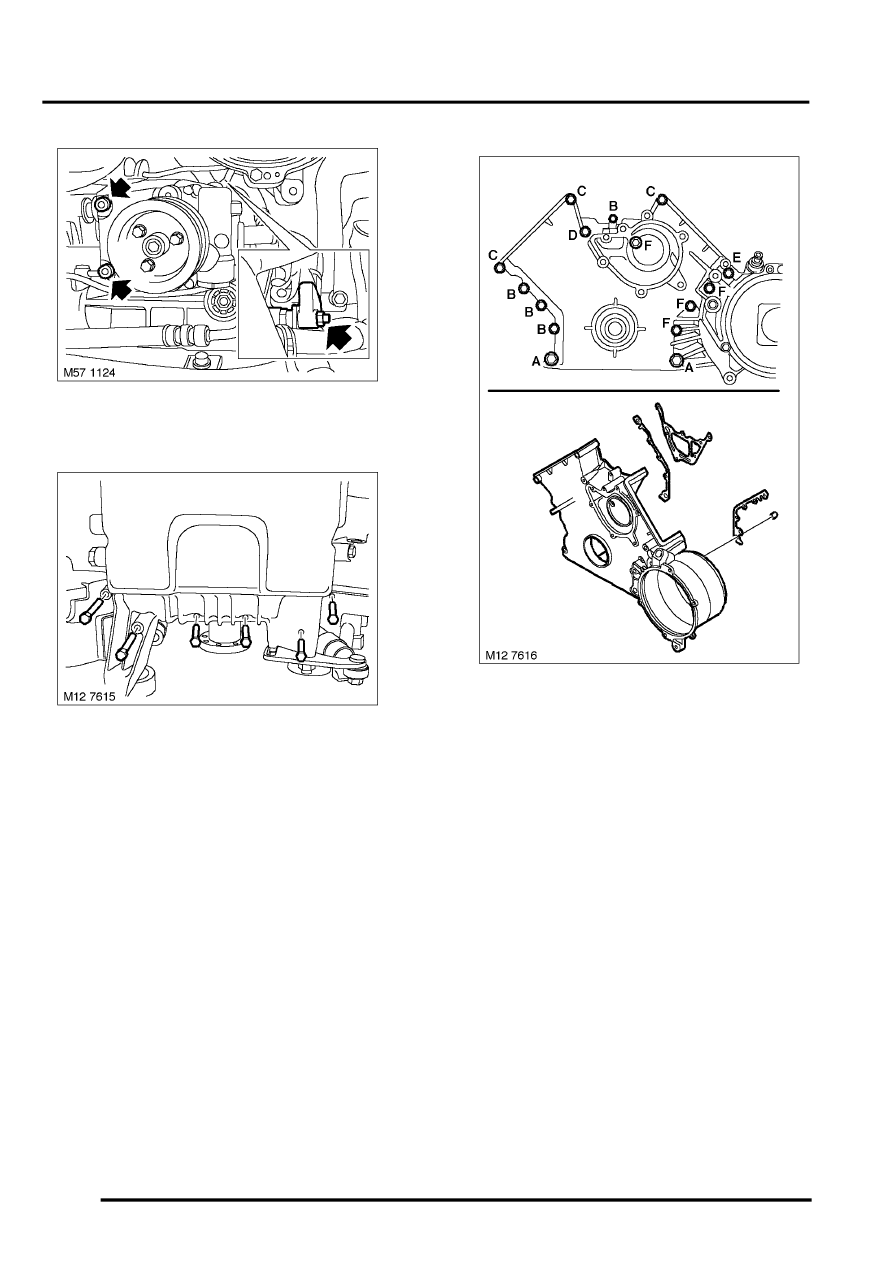

15. Remove 2 Allen bolts and 1 nut securing PAS
pump and move aside.
16. Remove 6 bolts securing lower timing gear
cover to upper sump.
17. Remove 15 bolts securing lower timing gear
cover to cylinder block.
l
A = M8 X 75 mm
l
B = M6 X 40 mm
l
C = M6 X 85 mm
l
D = M6 X 80 mm
l
E = M8 X 90 mm
l
F = M6 X 60 mm
NOTE: Note position of all securing bolts.
18. Remove lower timing gear cover.
19. Discard 3 lower timing gear cover gaskets.
Refit
1. Clean timing gear cover and mating faces,
clean dowels and dowel holes.
