LT230Q Transfer Box Component Assembling: Differential - Page 66
TRANSFER BOX
28
OVERHAUL

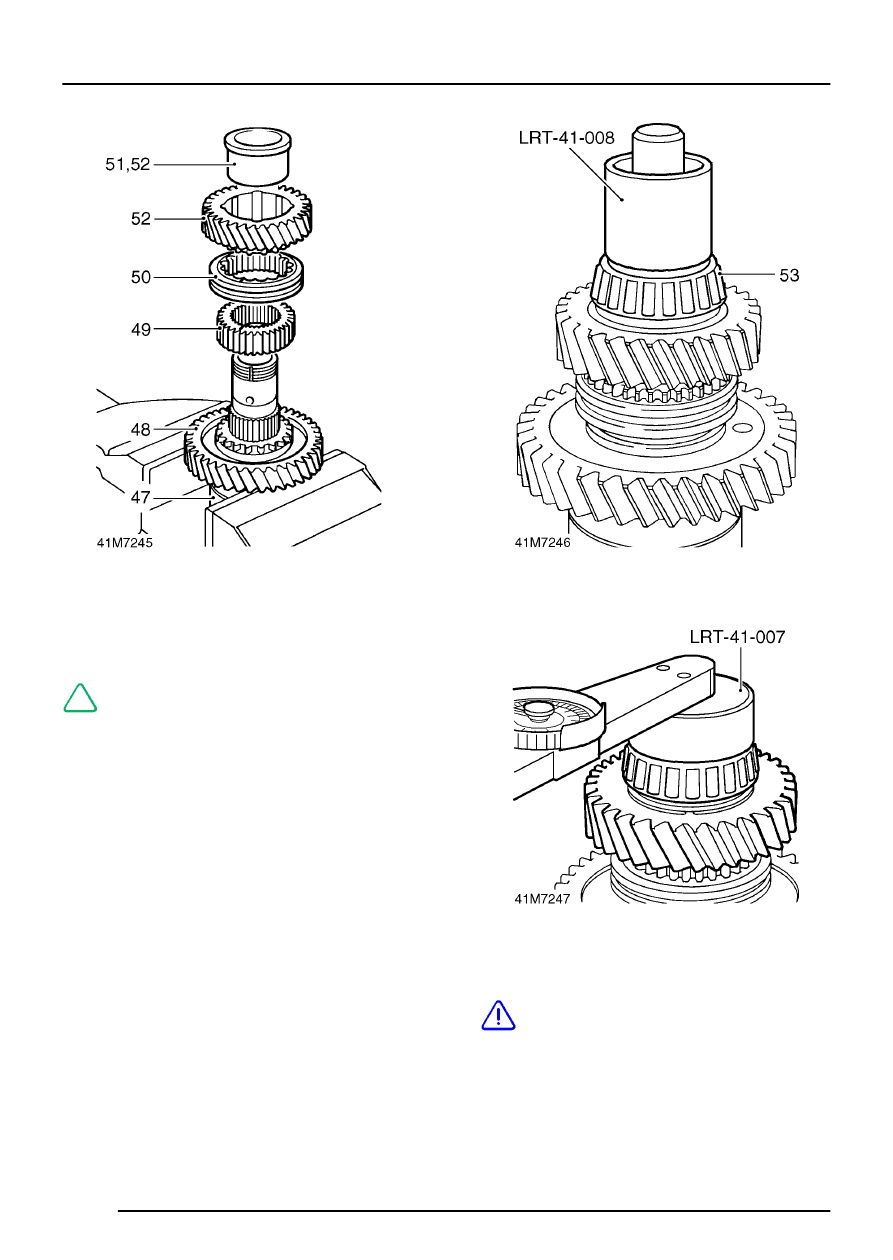

47. Support front half carrier in a soft-jawed vice.
48. Fit low range gear ensuring that dog teeth on
gear are towards threaded end of shaft.
NOTE: Use a suitable hollow mandrel to fit
gear if it is tight on splines.
49. Fit high/low hub ensuring that alignment mark
made during dismantling is towards threaded
end of shaft.
50. Fit high/low selector sleeve ensuring that
alignment marks on hub and sleeve are
together.
51. Fit bush to high range gear ensuring that collar
on bush is on opposite side of gear to the dog
teeth.
52. Fit high range gear and bush ensuring that
collar on bush is towards threaded end of
shaft.
53. Fit a new rear bearing using tool LRT-41-008.
54. Fit a new bearing retainer nut, tighten to 72 Nm
(53 lbf.ft) using tool LRT-41-007.
CAUTION: Do not stake nut at this stage.
