Range Rover P38
77
PANEL REPAIRS
NEW RANGE ROVER
6

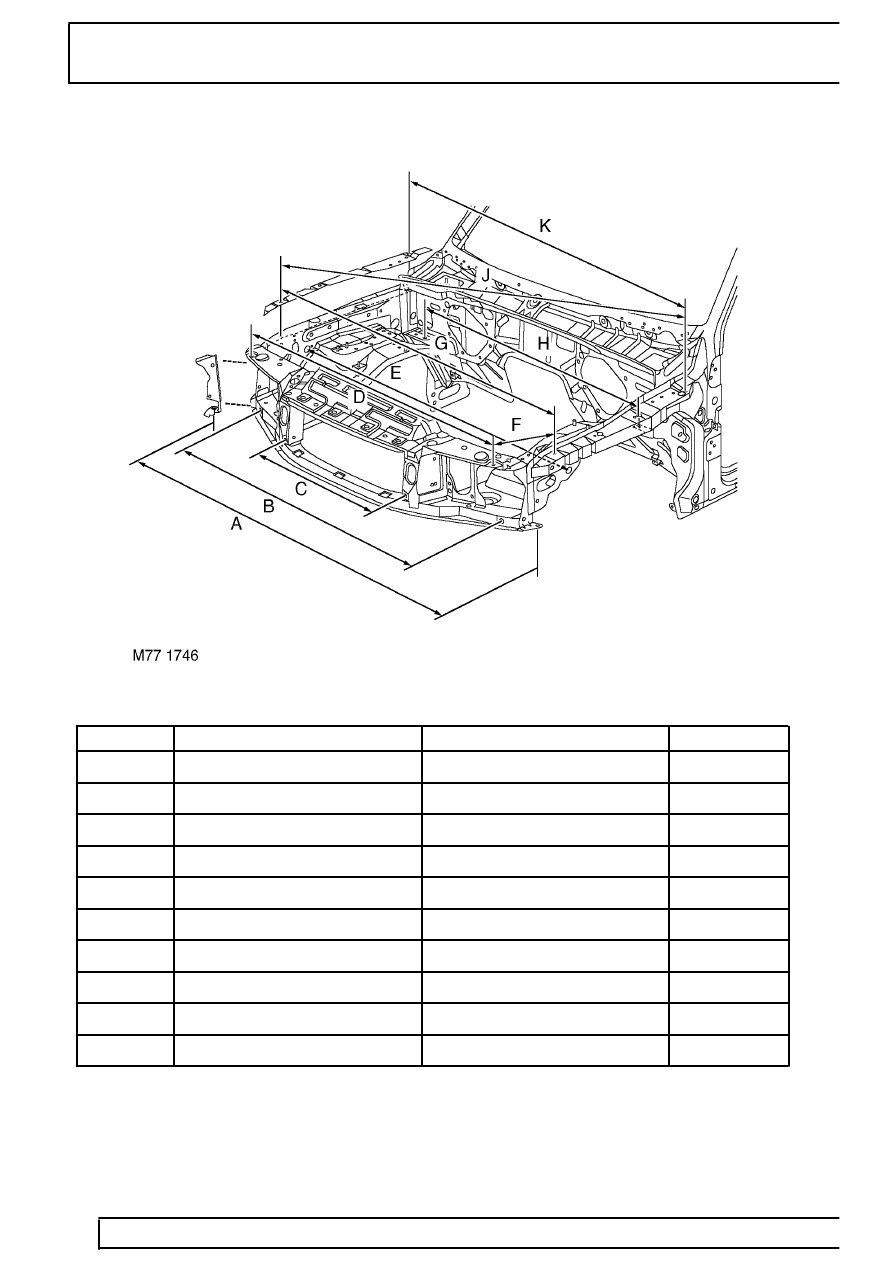

BODY DIMENSIONS
Body dimensions
ITEM
FROM
TO
DIMENSION
A
Wing, lower fixing hole - RH
Wing, lower fixing hole - LH
1712 (67.4)
B
Crossmember tooling hole - RH
Crossmember tooling hole - LH
1484.6 (58.45)
C
Grille location slot - RH
Grille location slot - LH
730 (28.74)
D
Headlamp fixing hole - RH
Headlamp fixing hole - LH
1468 (57.79)
E
Valance tooling hole - RH
Valance tooling hole - LH
1628.8 (64.12)
F
Headlamp fixing hole
Wing, front fixing hole
259.5 (10.22)
G
Wing, front fixing hole - RH
Wing, front fixing hole - LH
1668 (65.67)
H
Wheel arch tooling hole - RH
Wheel arch tooling hole - LH
1315 (51.77)
J
Wing, front fixing hole - RH
Wing, rear fixing hole - LH
1845.6 (72.66)
K
Wing, rear fixing hole - RH
Wing, rear fixing hole - LH
1696.1 (66.77)
Dimensions shown outside brackets are metric measurements (millimetres) and those inside brackets are imperial
measurements (inches).
