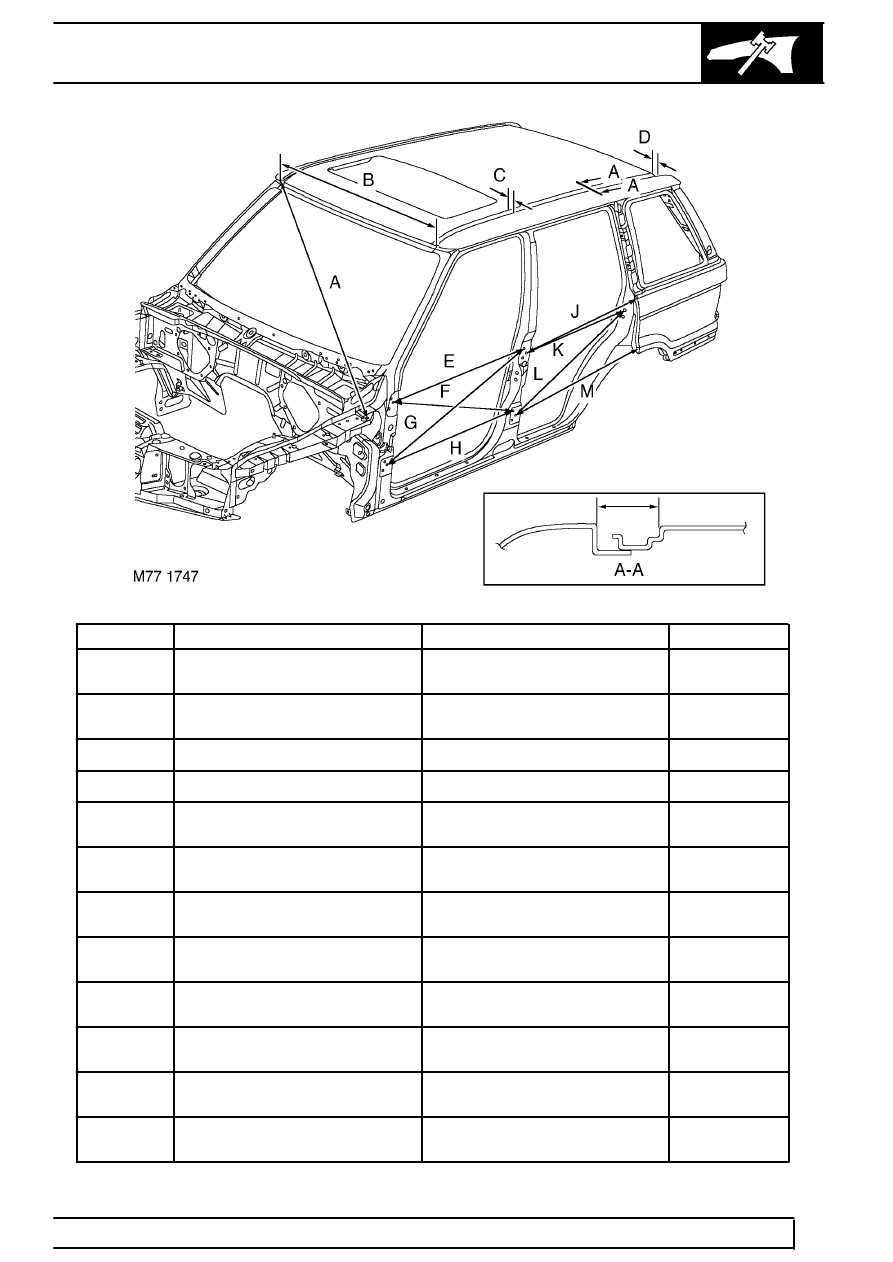

BODY DIMENSIONS
ITEM
FROM
TO
DIMENSION
A
Body side, top front corner point -
RH
Wing, rear fixing hole - LH
1758 (69.21)
B
Body side, top front corner point -
RH
Body side, top front corner point -
LH
1196 (47.09)
C
Roof, top break line
Body side, top break line
36.2 (1.42)
D
Roof, top break line
Body side, top break line
36.2 (1.42)
E
Top hinge fixing - rear hole - front
door
Top hinge fixing - top hole - rear
door
1061.1 (41.77)
F
Top hinge fixing - rear hole - front
door
Bottom hinge fixing - top hole -
rear door
1085.4 (42.73)
G
Bottom hinge fixing - rear hole -
front door
Top hinge fixing - top hole - rear
door
1140.9 (44.92)
H
Bottom hinge fixing - rear hole -
front door
Bottom hinge fixing - top hole -
rear door
1045.2 (41.15)
J
Top hinge fixing - middle hole -
rear door
Body side rear - corner point
973 (38.31)
K
Top hinge fixing - middle hole -
rear door
Striker - top fixing hole - rear door
932.8 (36.72)
L
Bottom hinge fixing - rear hole -
rear door
Striker - top fixing hole - rear door
1040.4 (40.96)
M
Bottom hinge fixing - rear hole -
rear door
Body side rear - corner point
1024.7 (40.34)
