Workshop Manuals Factory service & repair MG
MG MGF Body Repair Manual (1995-2000)05 · Restraint systems
05 · Body & interior

Seat belt pre-tensioner

Make
MG
Model
MGF Body Repair Manual
Year
1995–2000
Section
Repairs › Seat belt pre-tensioner
Restraint systemsSeat belt pre-tensioner

SEAT BELT PRE-TENSIONER

Service repair no - 76.73.75

WARNING: See Precautions.

Remove

  1. Make the SRS system safe.See Precautions.

CAUTION: Ensure pre-tensioner multiplug is disconnected before seat is removed.

  1. Remove seat. See BODY, Interior trim components.

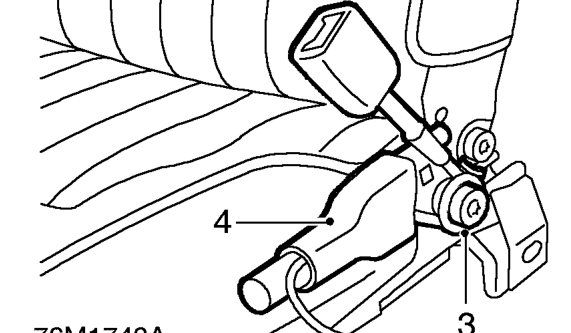

Seat belt pre-tensioner – Remove seat. See BODY, Interior trim components.
  1. Remove bolt securing pre-tensioner to seat.
  2. Remove pre-tensioner.

Refit

  1. Position pre-tensioner to seat and tighten bolt to 45 Nm.

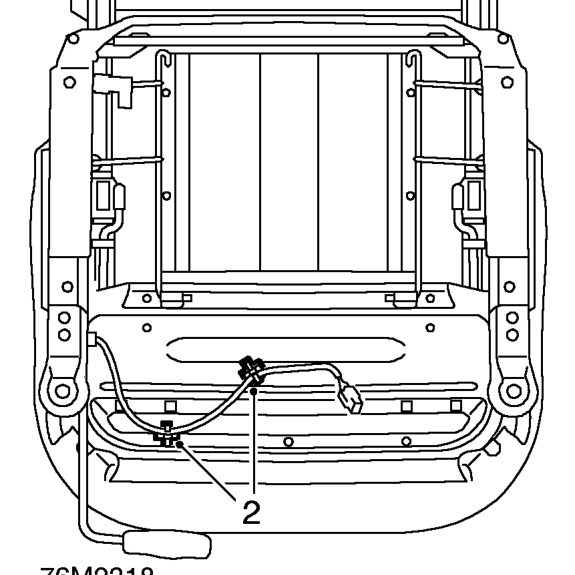

Seat belt pre-tensioner – Position pre-tensioner to seat and tighten bolt to 45 Nm.
  1. Ensure that pre-tensioner lead is correctly clipped to seat base.
  2. Fit seat. See BODY, Interior trim components.
  3. Carry out system check using TestBook.
