MG MGF Body Repair Manual (1995-2000)06 · Body
06 · Body & interior

Sun visor

Make
MG
Model
MGF Body Repair Manual
Year
1995–2000
Section
Interior trim components › Sun visor
BodySun visor

SUN VISOR

Service repair no - 76.10.47

Remove

  1. Lower sun visor.

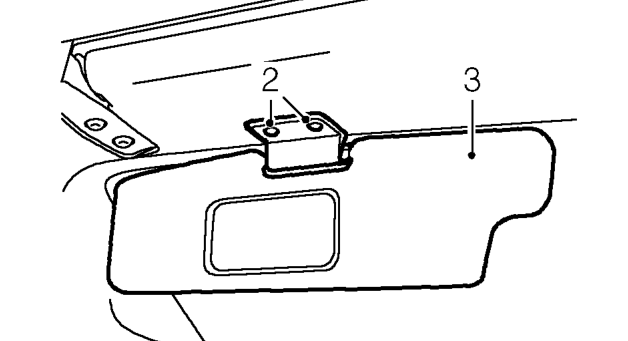

Sun visor – Lower sun visor.
  1. Remove 2 screws securing visor to header rail.
  2. Remove visor.

Refit

  1. Position visor and secure with screws.

INTERIOR MIRROR

Service repair no - 76.10.51

Remove

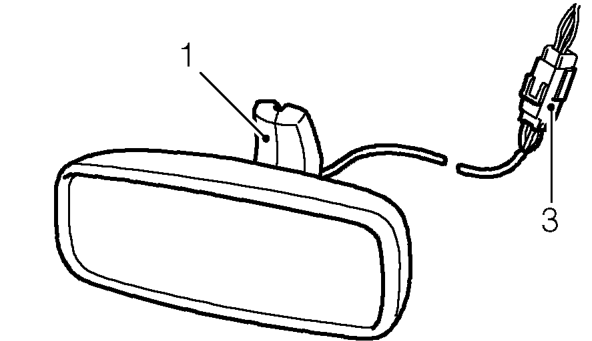

Interior mirror – Service repair no - 76.10.51
  1. Release mirror from screen mounted clip.
  2. Release cable and multiplug from header finisher.
  3. Disconnect multiplug and remove mirror.

Refit

  1. Connect multiplug and position cable to recess in mirror mounting.
  2. Fit mirror to windscreen.
  3. Position excess cable and multiplug behind header finisher.
