Workshop Manuals Factory service & repair MG
MG MGF Body Repair Manual (1995-2000)06 · Body
06 · Body & interior

Gear lever gaiter

Make
MG
Model
MGF Body Repair Manual
Year
1995–2000
Section
Interior trim components › Gear lever gaiter
BodyGear lever gaiter · page 1 of 2

GEAR LEVER GAITER

Service repair no - 76.25.06

Remove

  1. Remove centre console panel. See this section.

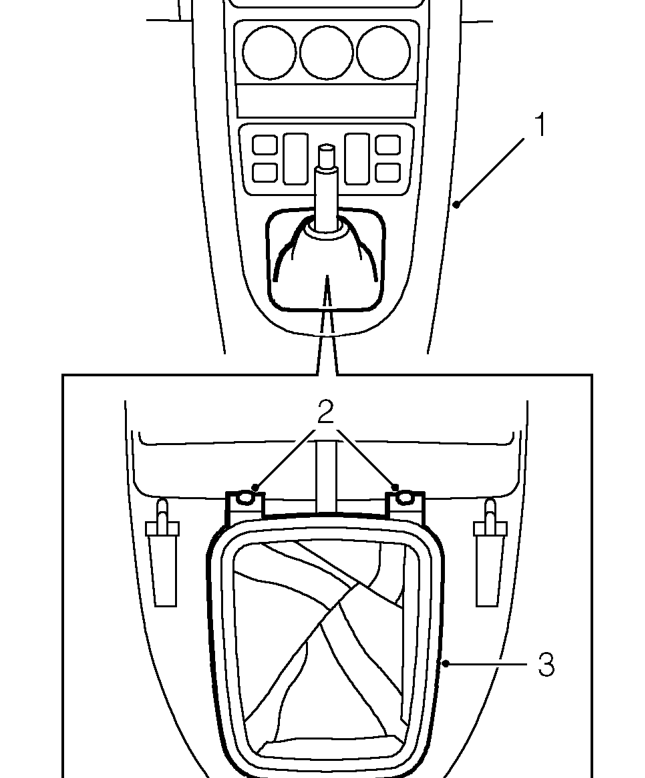

Gear lever gaiter – Remove centre console panel. See this section.
  1. Remove 2 screws securing gaiter retaining bracket to gaiter.
  2. Remove bracket and gaiter.

Refit

  1. Position gaiter.
  2. Fit bracket and secure with screws.
  3. Fit centre console panel. See this section.

CENTRE CONSOLE PANEL

Service repair no - 76.25.23

Remove

  1. Disconnect battery earth lead.
  2. Remove radio. See ELECTRICAL, Repairs.

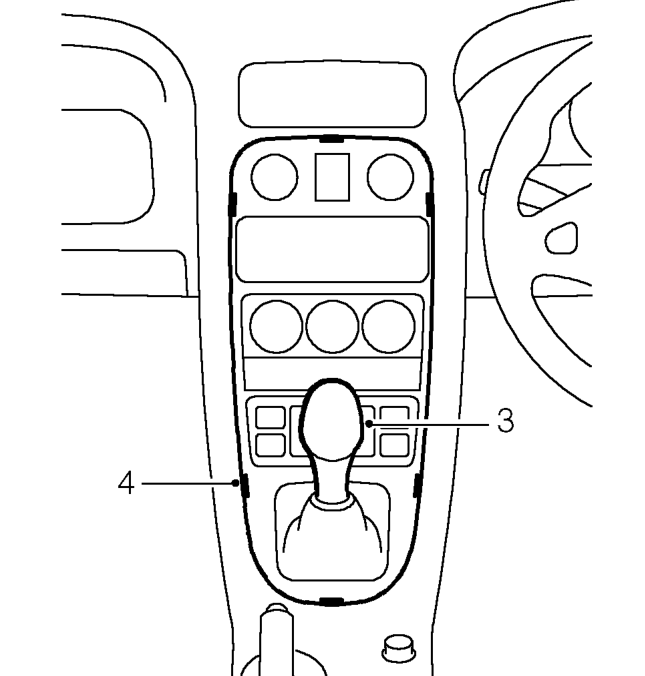

Centre console panel – Remove radio. See ELECTRICAL, Repairs.
  1. Remove gear knob.
  2. Release 6 clips securing console to fascia.
