SQUAB PAD - CENTRE

Service repair no - 78.90.50

WARNING: See RESTRAINT SYSTEMS, Precautions.

Remove

  1. Make the SRS system safe.See RESTRAINT SYSTEMS, Precautions.

CAUTION: Ensure pre-tensioner multiplug is disconnected before seat is removed.

  1. Remove seat. See this section.

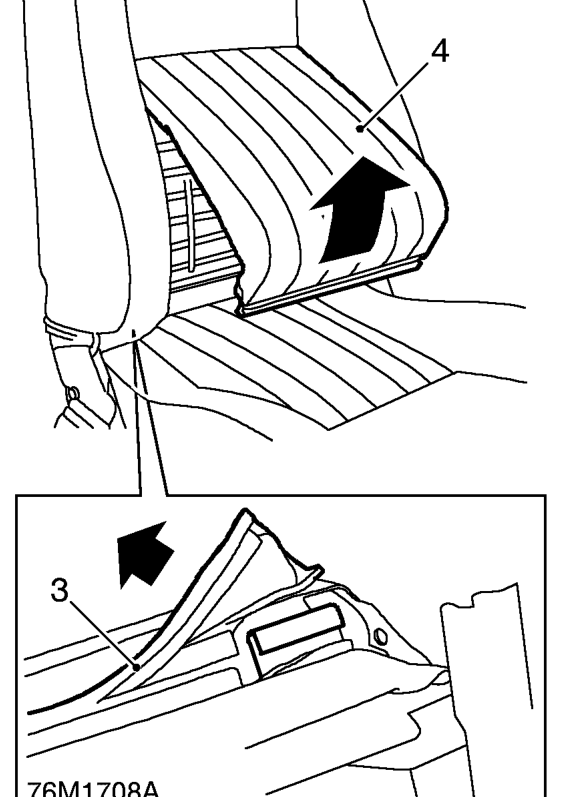

Squab pad - centre – Remove seat. See this section.
  1. Release squab cover, lower retainer.
  2. Raise squab centre panel.

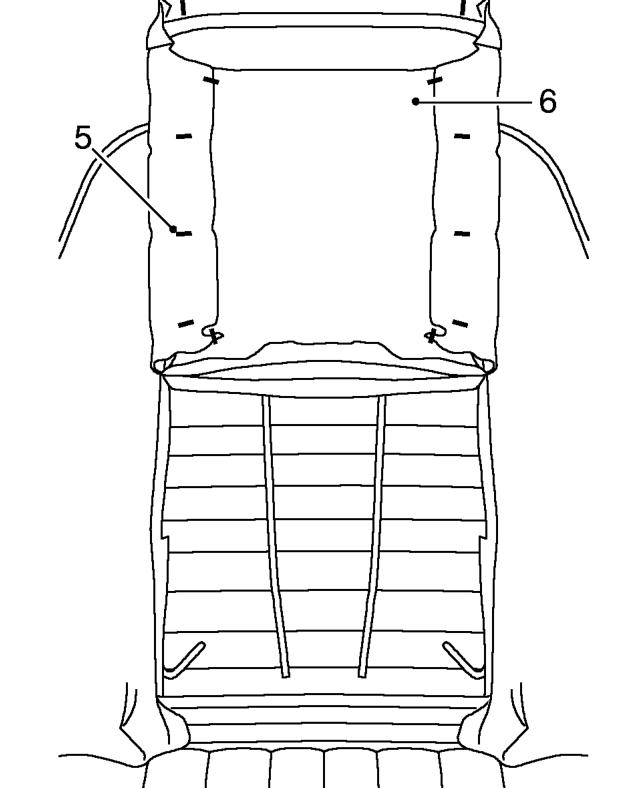

Squab pad - centre – Raise squab centre panel.
  1. Remove 12 Hog rings securing squab cover to centre pad.
  2. Remove seat squab, centre pad.

Refit

  1. Position seat squab, centre pad.
  2. Secure squab cover to centre pad with hog rings.
  3. Position squab centre panel.
  4. Secure squab cover, lower retainer.
  5. Fit seat. See this section.
