MG MGF Body Repair Manual (1995-2000)06 · Body
06 · Body & interior

Header trim

Make
MG
Model
MGF Body Repair Manual
Year
1995–2000
Section
Interior trim components › Header trim
BodyHeader trim · page 1 of 2

HEADER TRIM

Service repair no - 76.13.69

Remove

  1. Remove both sun visors. See this section.
  2. Release catches and lower hood.

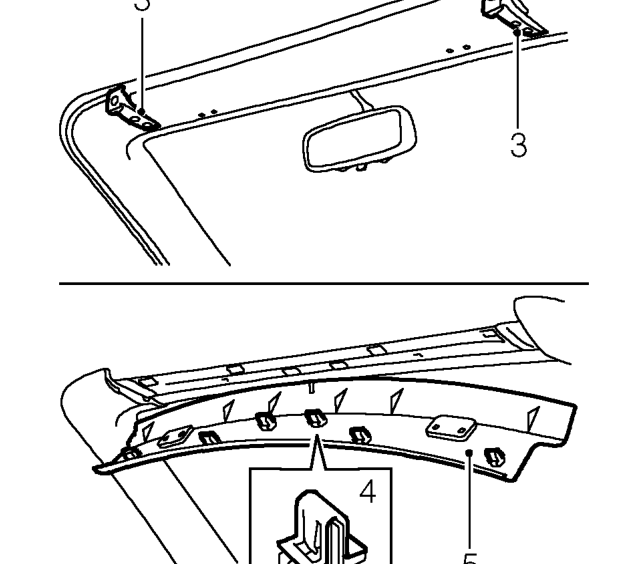

Header trim – Release catches and lower hood.
  1. Remove 2 Tx30 Torx screws securing each hood striker and remove strikers.
  2. Release 6 sprag clips securing trim to header rail.
  3. Remove trim.

Refit

  1. Position trim and engage sprag clips.
  2. Fit hood strikers and tighten screws to 6 Nm.
  3. Fit sun visors. See this section.
  4. Raise hood and secure catches.

FRONT CONSOLE

Service repair no - 76.25.01

WARNING: See RESTRAINT SYSTEMS, Precautions.

Remove

  1. Make SRS system safe. See RESTRAINT SYSTEMS, Precautions.
  2. Remove centre console panel. See this section.

CAUTION: Ensure pre-tensioner multiplug is disconnected before seat is removed.

  1. Remove both seats. See this section.
  2. Remove rear console. See this section.
  3. Remove both console closing panels. See this section.

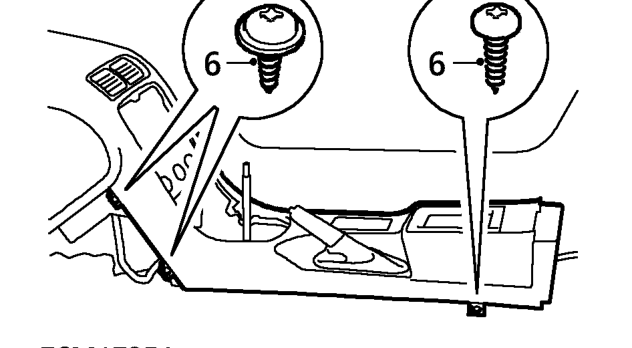

Front console – Remove both console closing panels. See this section.
  1. Remove 6 screws securing console to tunnel.
