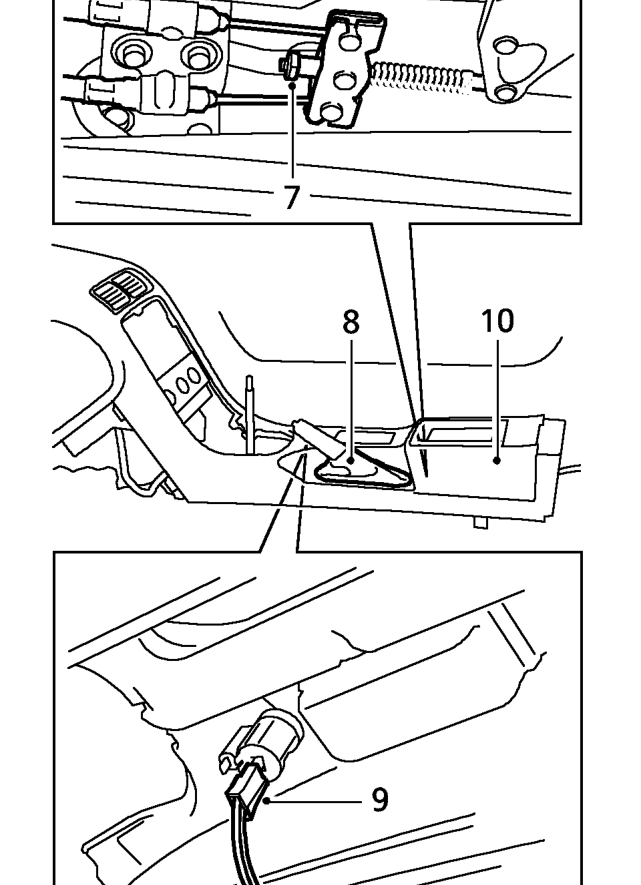

7. Loosen handbrake adjustment and position hand brake lever in ON position.
8. Release handbrake gaiter from console and remove gaiter from handbrake.
9. Release console and disconnect multiplug from cigar lighter.
10. Release volumetric sensor cable and remove console.

Refit

1. Position front console, connect cigar lighter multiplug and position volumetric sensor cable.
2. Position console and secure with screws.
3. Fit handbrake gaiter and secure with band.
4. Engage gaiter to console.
5. Adjust handbrake. See BRAKES, Adjustments.
6. Fit console closing panels. See this section.
7. Fit rear console. See this section.

CAUTION: Ensure that pre-tensioner flylead is correctly clipped to seat base before fitting seat, as shown in seat refit. See this section.

8. Fit seats. See this section.
9. Fit centre console panel. See this section.
10. Connect both battery terminals, earth lead last.
