Workshop Manuals Factory service & repair MG
MG MGF Body Repair Manual (1995-2000)06 · Body
06 · Body & interior

Seat

Make
MG
Model
MGF Body Repair Manual
Year
1995–2000
Section
Interior trim components › Seat
BodySeat

SEAT

Service repair no - 78.10.44/99

WARNING: See RESTRAINT SYSTEMS, Precautions.

Remove

  1. Make the SRS system safe.See RESTRAINT SYSTEMS, Precautions.
  2. Lift seat adjuster, move seat rearwards.

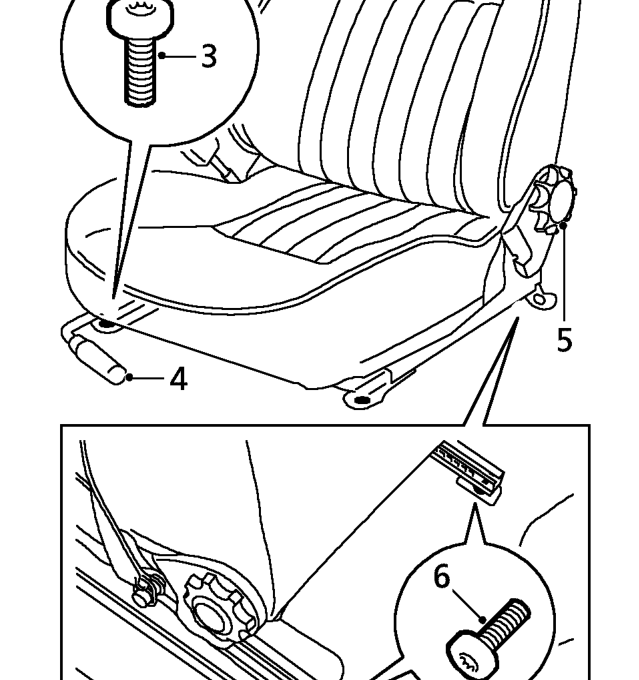

Seat – Lift seat adjuster, move seat rearwards.
  1. Remove Torx screw from front of each seat runner.
  2. Lift seat adjuster, move seat forwards.
  3. Rotate recline handle to tilt squab fully forward.
  4. Remove Torx screw from rear of each seat runner.

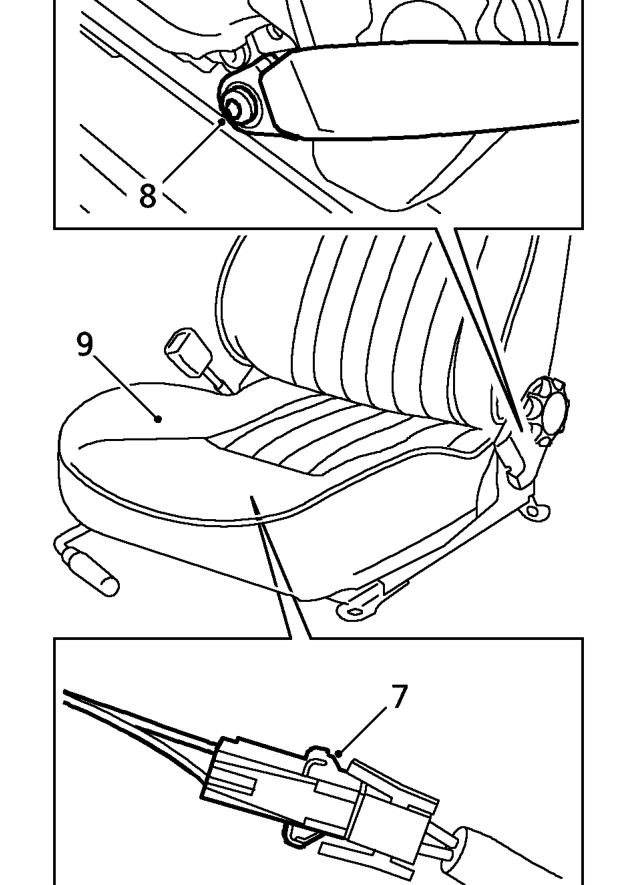

Seat – Remove Torx screw from rear of each seat runner.
  1. Disconnect seat belt pre-tensioner multiplug.
  2. Position seat and remove Torx screw securing seat belt strap to seat frame.
  3. Remove seat.
