Rear console

REAR CONSOLE

Service repair no - 76.25.04

Remove

1. Remove rear bulkhead finisher. See this section.

2. Disconnect multiplug from volumetric sensor.

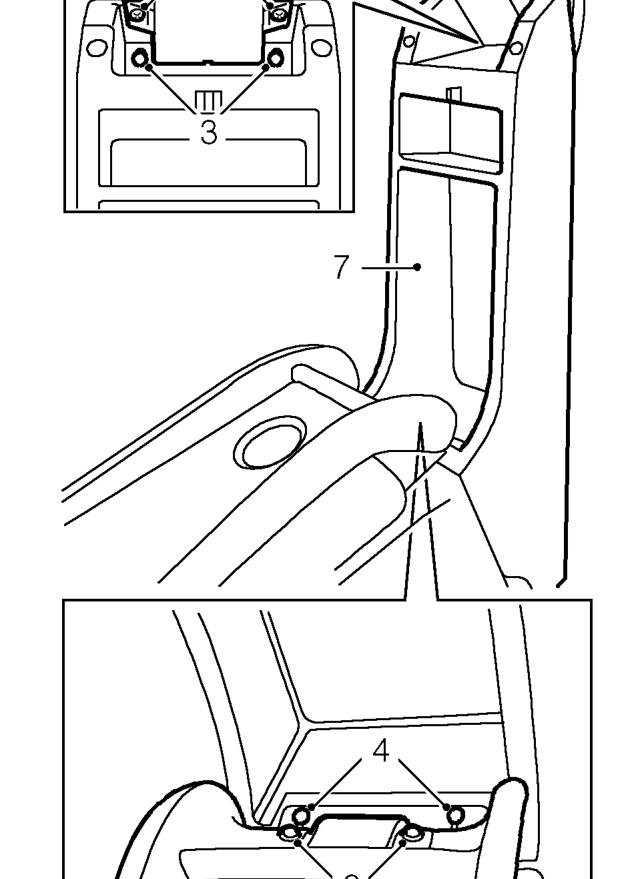

3. Remove 2 screws securing rear console to rear bulkhead.
4. Open rear console lid and remove 2 screws securing rear console to front console.
5. Open front console lid and remove storage bin from front console.
6. Remove 2 screws securing console lid bracket to front console and remove console lid assembly.
7. Remove rear console.
8. Remove 2 screws securing volumetric sensor to rear console and remove sensor.

Refit

1. Fit sensor to console and secure with screws.
2. Fit rear console to bulkhead and secure with 2 upper screws. Ensure correct position of cable.
3. Fit console lid assembly and secure with screws.
4. Fit front console storage bin.
5. Connect multiplug to sensor.
6. Fit rear bulkhead finisher. See this section.
