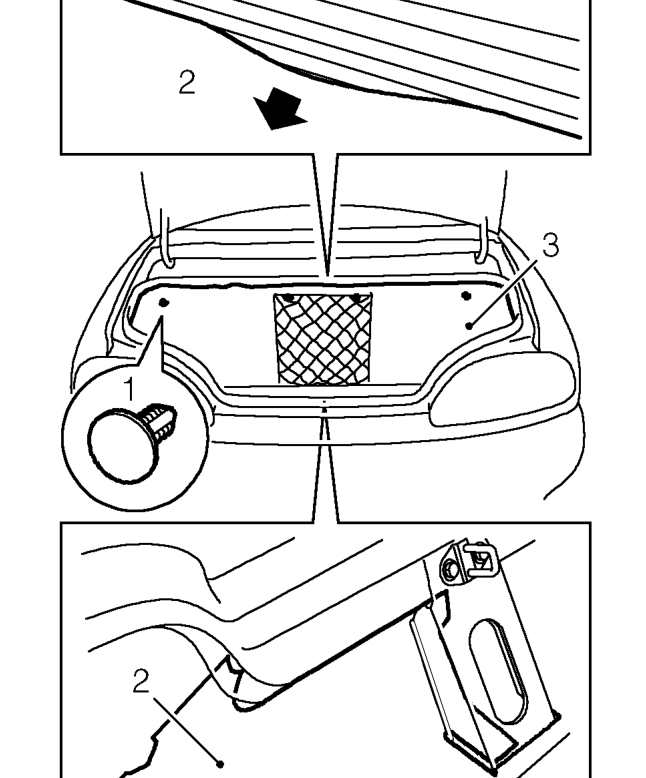

Luggage compartment trim

LUGGAGE COMPARTMENT TRIM

Service repair no - 76.13.17

Remove

1. Remove 4 clips securing trim to engine compartment bulkhead.
2. Release trim from flip seal, bonnet release lever and boot lid striker.
3. Remove trim.

Refit

1. Fit trim and secure with clips.
2. Position trim behind flip seal.
3. Position trim to bonnet release lever and boot lid striker.

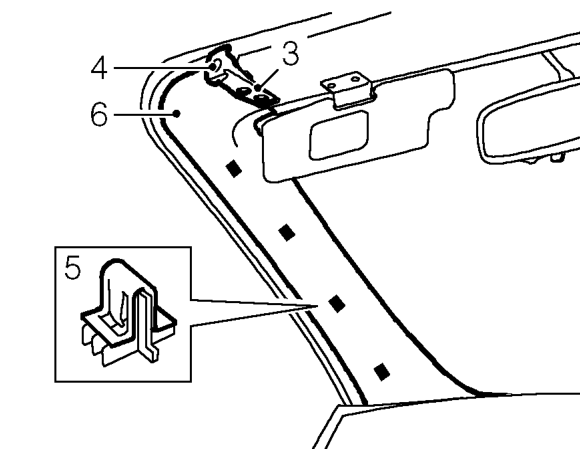

’A’ POST TRIM

Service repair no - 76.13.26

Remove

1. Lower sun visor.
2. Release catches and lower hood.

3. Remove 2 Tx30 Torx screws securing hood striker.
4. Remove striker.
5. Release 4 sprag clips securing trim to ’A’ post.
6. Remove ’A’ post trim.

Refit

1. Position trim and engage sprag clips.
2. Fit hood striker and tighten screws to 6 Nm.
3. Reposition sun visor.
4. Raise hood and secure catches.
