MG MGF Body Repair Manual (1995-2000)06 · Body
06 · Body & interior

Seat squab assembly

Make
MG
Model
MGF Body Repair Manual
Year
1995–2000
Section
Interior trim components › Seat squab assembly
BodySeat squab assembly · page 1 of 2

Refit

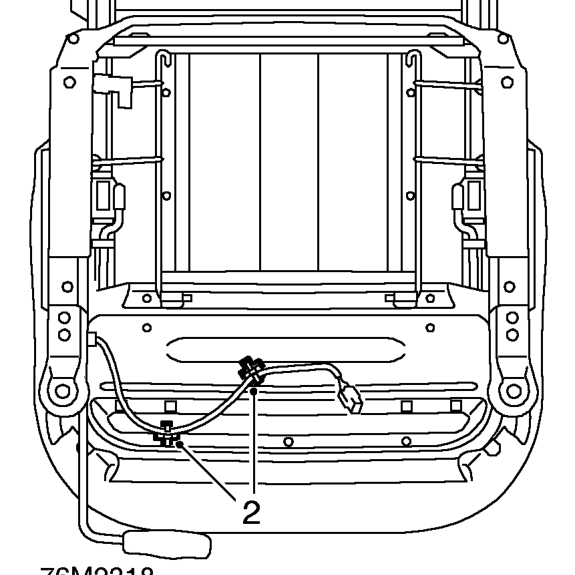

  1. Ensure harness lead does not become trapped under seat runner when fitting seat.
Ensure harness lead does not become trapped under seat runner when fitting seat.
  1. Ensure that pre-tensioner lead is correctly clipped to seat base.
  2. Position seat and align runners to floor bolt holes.
  3. Connect pre-tensioner multiplug.
  4. Fit but do not tighten Torx screw securing rear of each seat runner.
  5. Lift seat adjuster, move seat rearwards.
  6. Fit Torx screw securing front of each seat runner and tighten to 45 Nm.
  7. Lift seat adjuster, move seat forwards.
  8. Tighten Torx screw securing rear of each seat runner to 45 Nm.
  9. Connect both battery leads, earth lead last.
  10. Position seat belt strap to seat frame and tighten Torx screw to 30 Nm.
  11. Carry out system check using TestBook.

SEAT SQUAB ASSEMBLY

Service repair no - 78.10.50/99

WARNING: See RESTRAINT SYSTEMS, Precautions.

Remove

  1. Make the SRS system safe.See RESTRAINT SYSTEMS, Precautions.

CAUTION: Ensure pre-tensioner multiplug is disconnected before seat is removed.

  1. Remove seat. See this section.

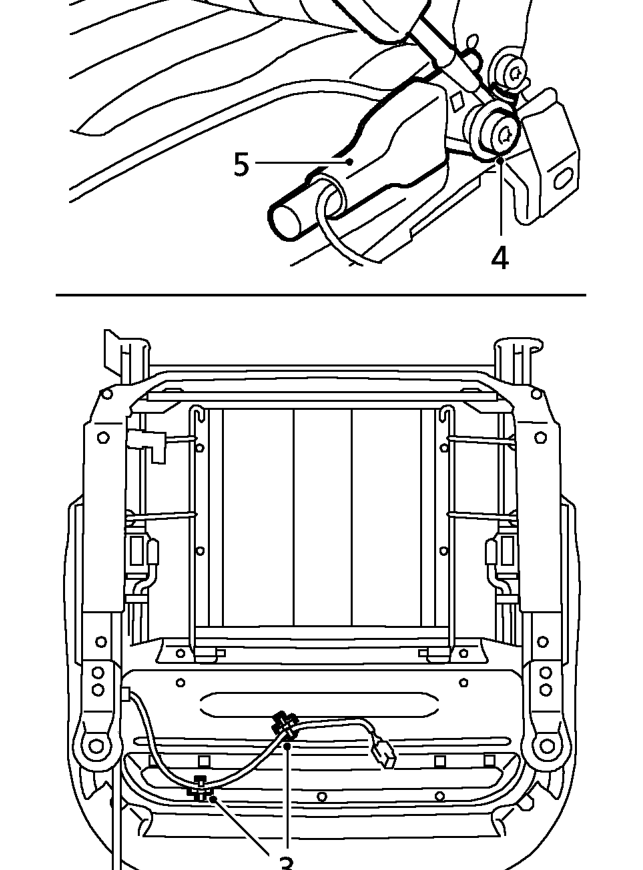

Seat squab assembly – Remove seat. See this section.
  1. Release 2 clips securing pre-tensioner flylead to underside of seat.
  2. Remove Torx bolt securing pre-tensioner to squab frame.
  3. Remove pre-tensioner.
