Seat squab assembly (page 2 of 2)

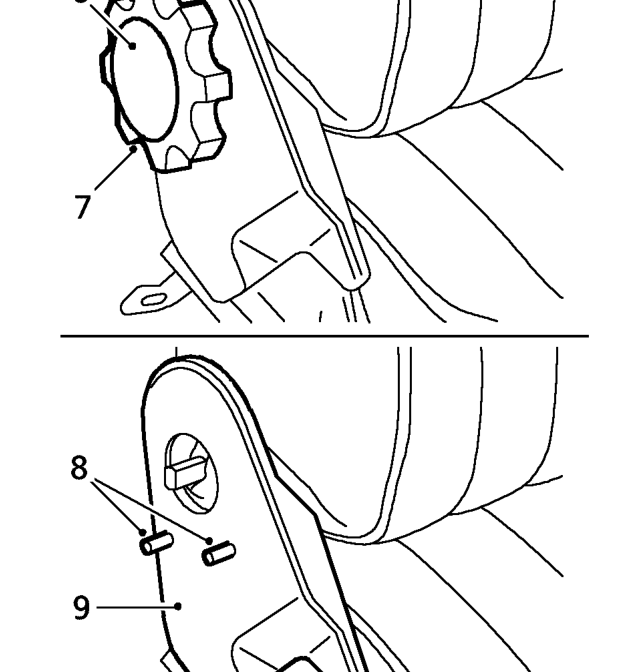

6. Remove outer half of squab recline handle.
7. Remove inner half of squab recline handle.
8. Using a suitable punch, drive out 2 retaining pins from the side valance.

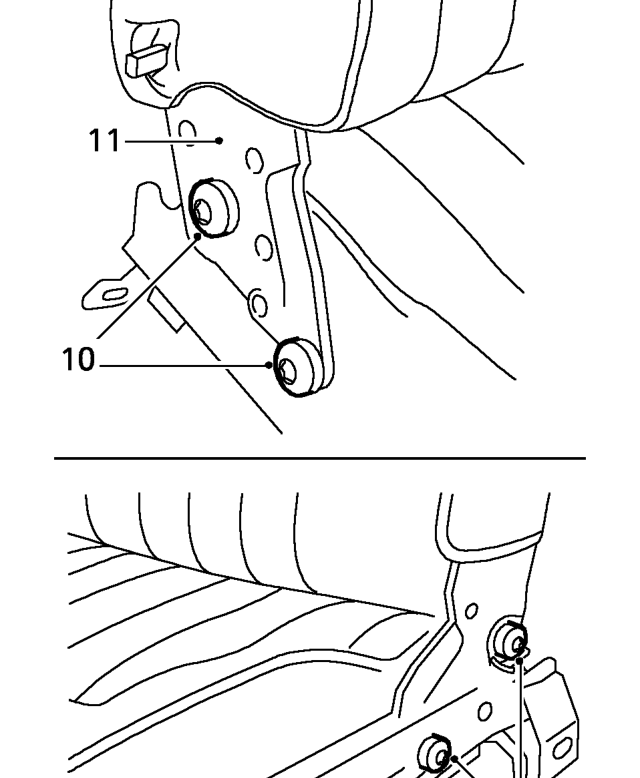

9. Remove side valance.

10. Remove 4 Torx bolts securing squab frame to cushion frame.
11. Remove squab assembly.

Refit

1. Fit squab frame to cushion frame, fit Torx bolts and tighten to 45 Nm.
2. Fit side valance and secure with pins.
3. Fit inner half of squab recline handle.
4. Fit outer half of squab recline handle.
5. Fit pre-tensioner to squab frame, fit Torx bolt and tighten to 30 Nm.
6. Secure pre-tensioner flylead clips to underside of seat.

CAUTION: To prevent damage to the pre-tensioner flylead ensure flylead is positioned correctly to seat, as shown in seat refit. See this section.

7. Fit seat. See this section.
