SQUAB COVER

Service repair no - 78.90.08

WARNING: See RESTRAINT SYSTEMS, Precautions.

Remove

  1. Make the SRS system safe.See RESTRAINT SYSTEMS, Precautions.

CAUTION: Ensure pre-tensioner multiplug is disconnected before seat is removed.

  1. Remove seat. See this section.

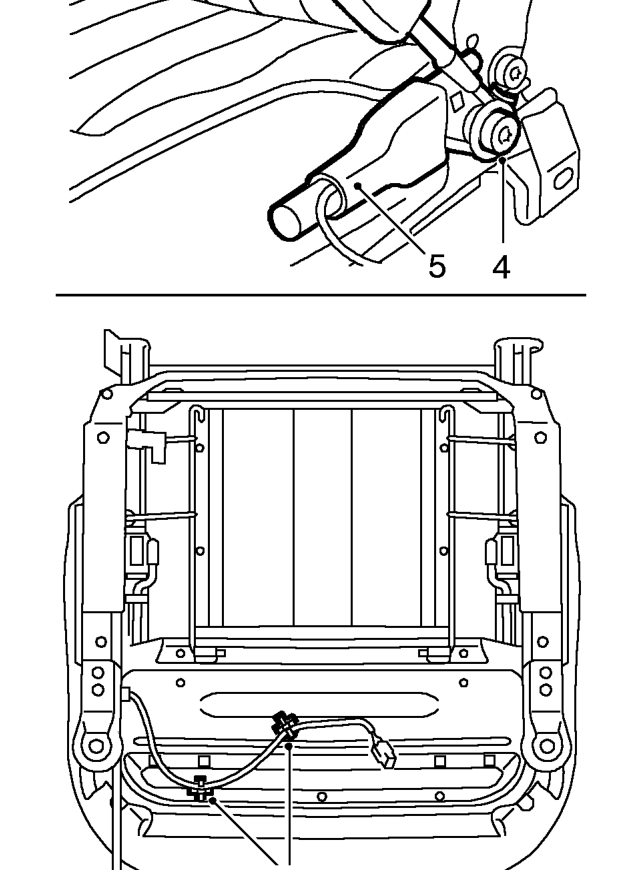

Squab cover – Remove seat. See this section.
  1. Release 2 clips securing pre-tensioner flylead to underside of seat.
  2. Remove Torx bolt securing pre-tensioner to squab frame.
  3. Remove pre-tensioner.

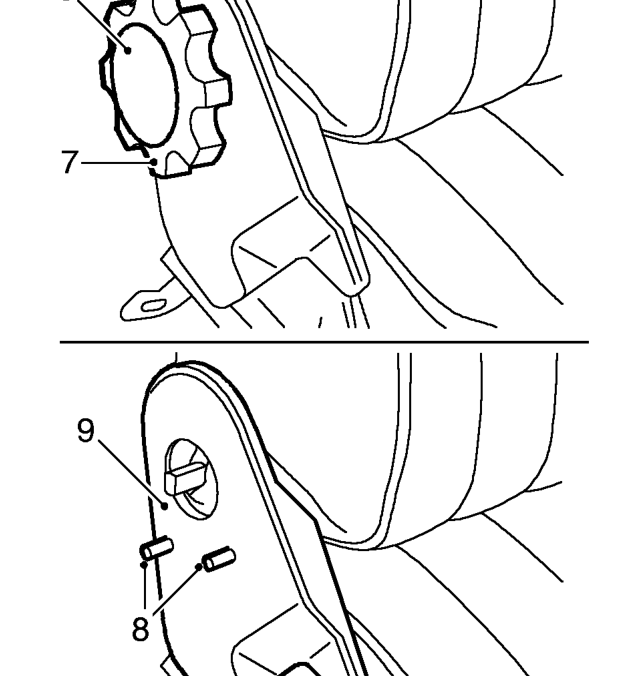

Squab cover – Remove pre-tensioner.
  1. Remove outer half of squab recline handle.
  2. Remove inner half of squab recline handle.
  3. Using a suitable punch, drive out 2 retaining pins from the side valance.
  4. Remove side valance.
