Glovebox

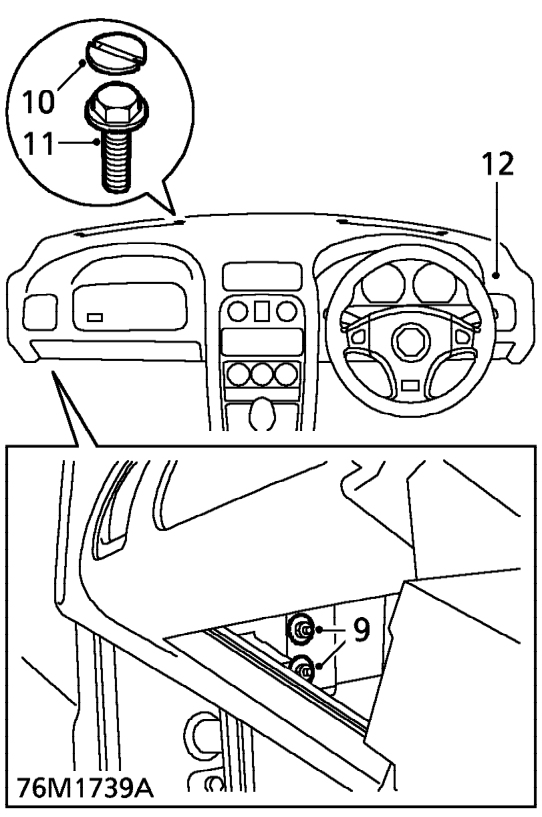

9. Loosen 4 nuts securing fascia to lower ’A’ post.
10. Release 4 retaining bolt caps from fascia and collect caps.
11. Remove 4 bolts securing fascia to scuttle.
12. Remove fascia panel.

Refit

1. Position fascia to scuttle.
2. Align fascia and secure with nuts and bolts.
3. Fit retaining bolt caps.
4. Engage heater ducts to fascia.
5. Position fuse box cover to fascia and secure with screws.
6. Align heater controls to fascia and secure with screws.
7. Fit glovebox. See this section.
8. Fit instrument pack. See INSTRUMENTS, Repairs.
9. Fit steering column switch pack. See ELECTRICAL, Repairs.
10. Fit front console. See this section.

GLOVEBOX

Service repair no - 76.52.03

Remove

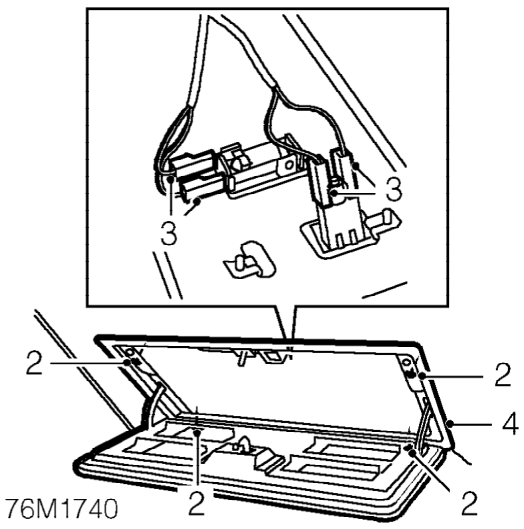

1. Open glovebox lid.

2. Remove 4 screws securing glovebox to fascia.
3. Release glovebox and disconnect 4 Lucars.
4. Remove glovebox.

Refit

1. Position glovebox and connect Lucars.
2. Engage glovebox to fascia and secure with screws.
3. Close glovebox lid.
