Pullmaflex - seat squab

Refit

1. Fit squab cover to pad.
2. Fit Hog rings securing squab cover to frame.
3. Position squab centre panel.
4. Secure squab cover, lower retainer.
5. Fit head restraint, guide caps.
6. Fit head restraint.
7. Rotate inboard head restraint, guide cap back 90° to lock head restraint.
8. Fit side valance and secure with pins.
9. Fit inner half of squab recline handle.
10. Fit outer half of squab recline handle.
11. Fit pre-tensioner to squab frame, fit Torx bolt and tighten to 30 Nm.

CAUTION: To prevent damage to the pre-tensioner flylead ensure flylead is correctly positioned to seat, as shown in seat refit. See this section.

12. Secure pre-tensioner flylead clips to underside of seat.
13. Fit seat. See this section.

PULLMAFLEX - SEAT SQUAB

Service repair no - 78.90.21

WARNING: See RESTRAINT SYSTEMS, Precautions.

Remove

1. Make the SRS system safe.See RESTRAINT SYSTEMS, Precautions.
2. Remove squab cover. See this section.

3. Remove squab pad from frame.

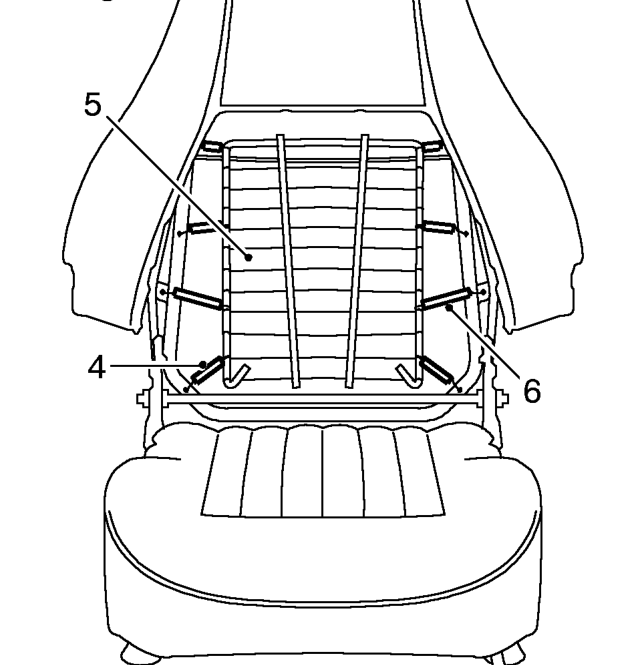

4. Release springs from pullmaflex.
5. Remove pullmaflex.
6. Noting there fitted positions collect pullmaflex springs.

Refit

1. Fit springs to squab frame.
2. Position pullmaflex to squab frame and secure with springs.
3. Fit squab pad to frame.
4. Fit squab cover. See this section.
