MG MGF Body Repair Manual (1995-2000)06 · Body
06 · Body & interior

Rear bulkhead finisher

Make
MG
Model
MGF Body Repair Manual
Year
1995–2000
Section
Interior trim components › Rear bulkhead finisher
BodyRear bulkhead finisher

REAR BULKHEAD FINISHER

Service repair no - 76.13.49

Remove

Rear bulkhead finisher – Service repair no - 76.13.49

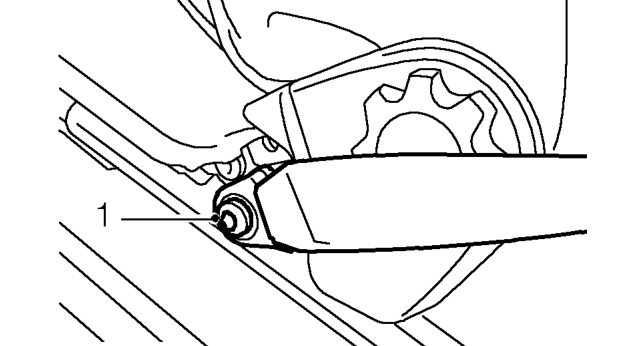

  1. Using tool 18G 1744, remove Torx bolt securing seat belt straps to seat frames.
Rear bulkhead finisher – Using tool 18G 1744, remove Torx bolt securing seat belt straps to seat frames.

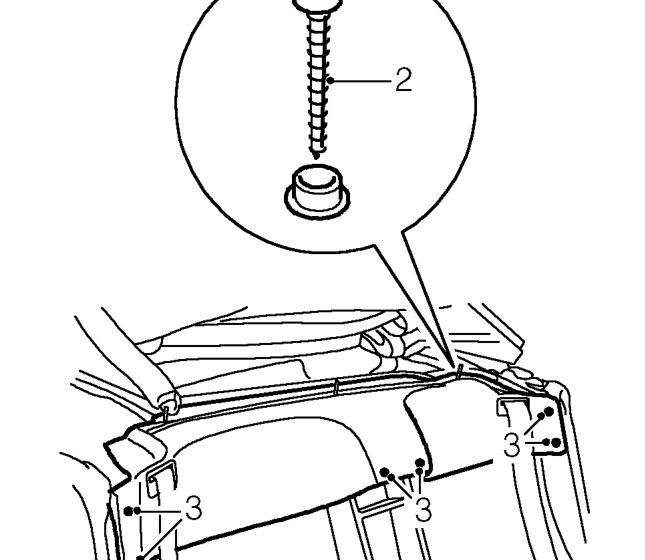

  1. Remove 3 screws securing finisher and collect press studs.
  2. Release studs securing finisher to bulkhead and rear of centre console.
Rear bulkhead finisher – Release studs securing finisher to bulkhead and rear of centre console.

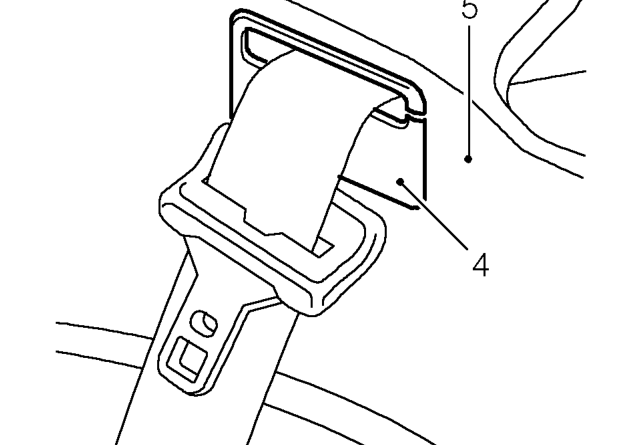

  1. Release belt guides and unthread seat belts from finisher.
  2. Remove bulkhead finisher.

Refit

  1. Position finisher and thread seat belts into position.
  2. Engage belt guides to finisher.
  3. Align finisher to bulkhead and engage studs.
  4. Position press studs and secure with screws.
  5. Fit seat belt straps to seats and tighten bolts to 30 Nm.
  6. Return seats to original positions.
