SQUAB FRAME

Service repair no - 78.90.22

WARNING: See RESTRAINT SYSTEMS, Precautions.

Remove

  1. Make the SRS system safe.See RESTRAINT SYSTEMS, Precautions.
  2. Remove seat squab pullmaflex. See this section.

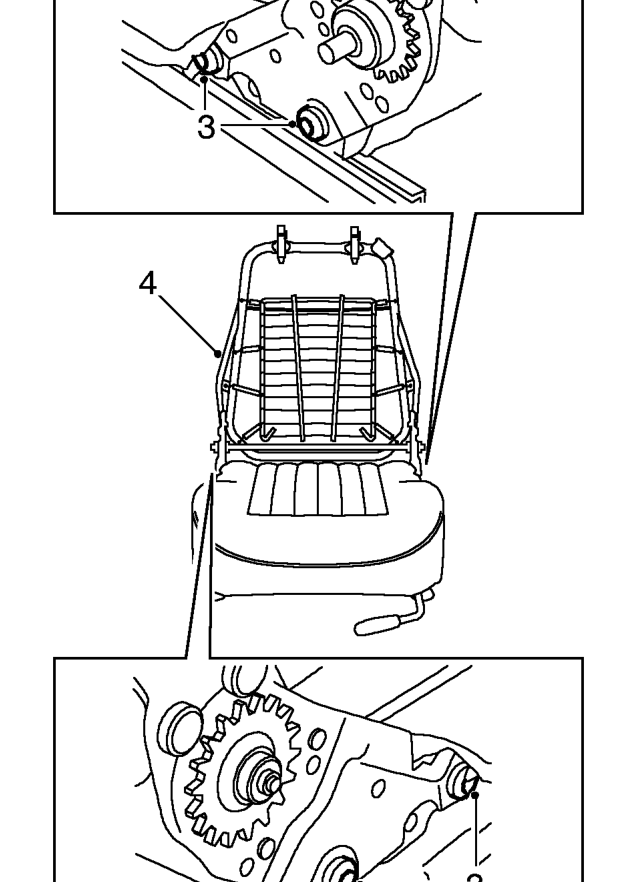

Squab frame – Remove seat squab pullmaflex. See this section.
  1. Remove 4 Tx50 Torx bolts securing squab frame to cushion frame.
  2. Remove squab frame.

Refit

  1. Fit squab frame to cushion frame.
  2. Fit Torx bolts securing squab frame to cushion frame and tighten to 45 Nm.
  3. Fit seat squab pullmaflex. See this section.

SQUAB PAD

Service repair no - 78.90.49

WARNING: See RESTRAINT SYSTEMS, Precautions.

Remove

  1. Make the SRS system safe.See RESTRAINT SYSTEMS, Precautions.
  2. Remove squab cover. See this section.
  3. Remove squab pad from frame.

Refit

  1. Fit squab pad to frame.
  2. Fit squab cover. See this section.
