MG MGF Body Repair Manual (1995-2000)06 · Body
06 · Body & interior

Squab cover (page 2 of 2)

Make
MG
Model
MGF Body Repair Manual
Year
1995–2000
Section
Interior trim components
BodySquab cover · page 2 of 2
Diagram

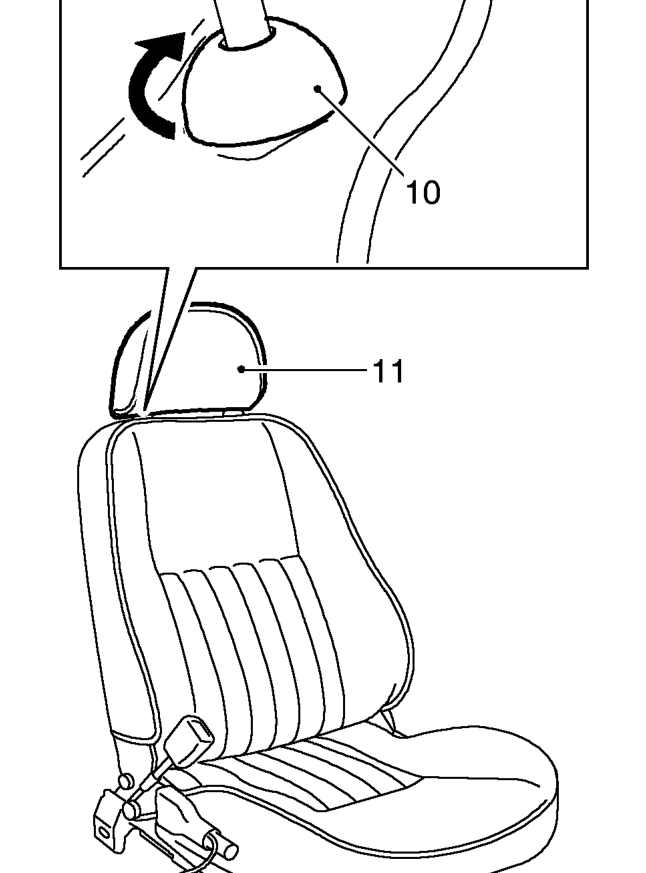

  1. Rotate inboard head restraint guide cap 90°.
  2. Remove head restraint.
  3. Remove head restraint, guide caps.
Remove head restraint, guide caps.

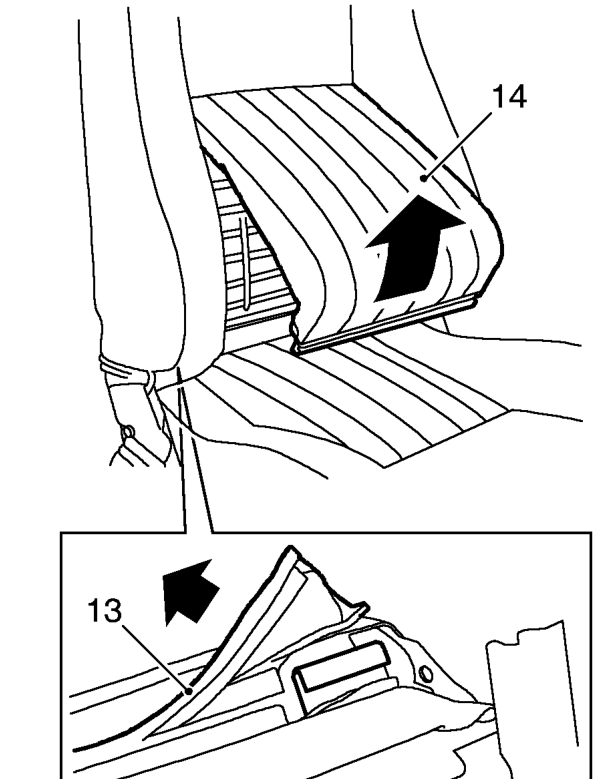

  1. Release squab cover lower retainer.
  2. Raise squab centre panel.
