Workshop Manuals Factory service & repair MG
MG MGF Body Repair Manual (1995-2000)06 · Body
06 · Body & interior

Gear lever gaiter (page 2 of 2)

Make
MG
Model
MGF Body Repair Manual
Year
1995–2000
Section
Interior trim components
BodyGear lever gaiter · page 2 of 2

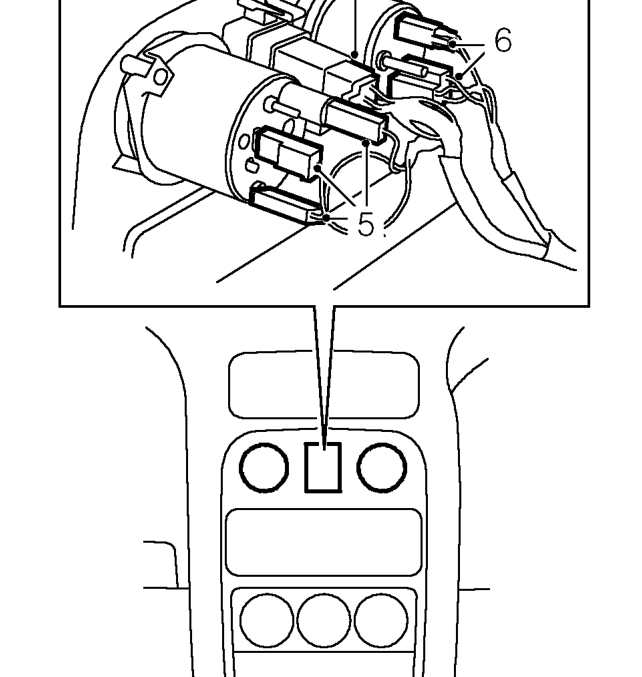

Diagram
  1. Release 3 Lucars from clock.
  2. Release multiplug and bulb holder from oil temperature gauge.
  3. Release hazard switch multiplug.

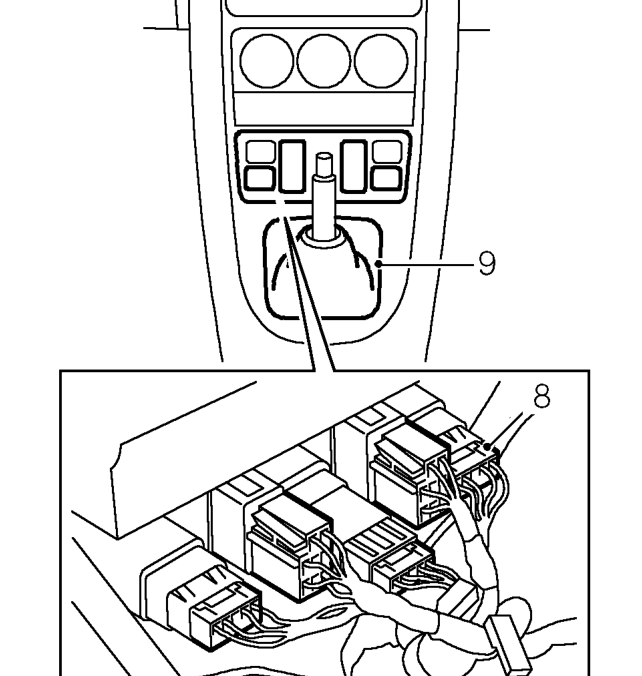

Release hazard switch multiplug.
  1. Release 6 multiplugs from switches.
  2. Release gaiter from gear lever and remove centre console.

Refit

  1. Position console and engage gaiter to gear lever.
  2. Connect multiplugs, Lucars and bulb holder.
  3. Secure console clips to fascia.
  4. Fit gear knob.
  5. Fit radio. See ELECTRICAL, Repairs.
  6. Connect battery earth lead.
