SRS harness

SRS HARNESS

Service repair no - 76.73.73

WARNING: See Precautions.

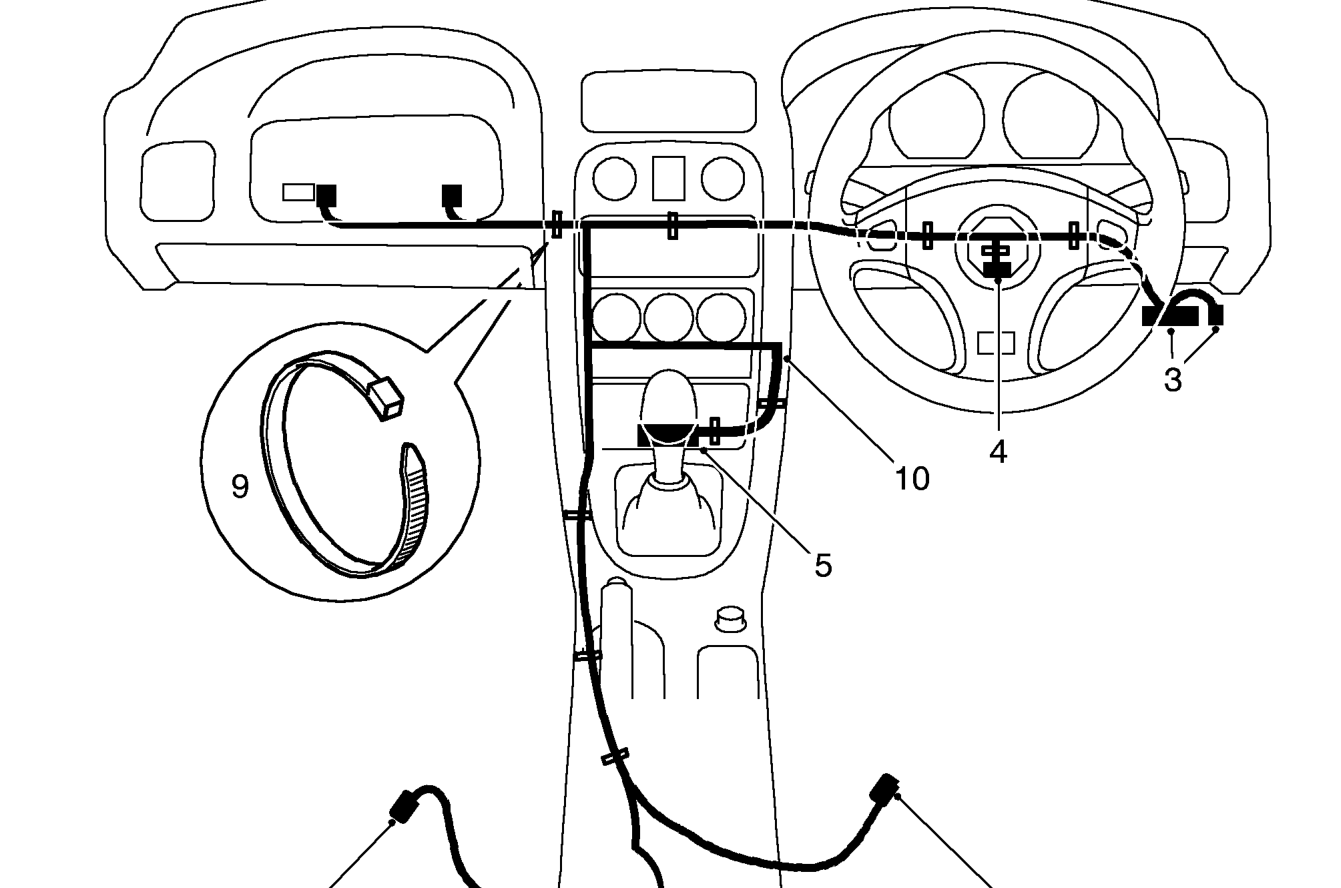

Remove

1. Make the SRS system safe.See Precautions.
2. Remove fascia. See BODY, Interior trim components.
3. Disconnect SRS multiplug and SRS fuse satellite from fusebox.
4. Disconnect multiplug from steering column.
5. Disconnect multiplug from DCU and release harness from bracket clip.
6. Disconnect 2 multiplugs from seatbelt pre-tensioners.
7. Remove 4 Torx bolts securing DCU bracket to tunnel, release harness earth and position DCU aside.
8. Remove 4 nuts and 3 bolts securing gear lever assembly to tunnel and position assembly aside.
9. Release 11 cable clips securing SRS harness to main harness.
10. Remove SRS harness.
