Door and header seal

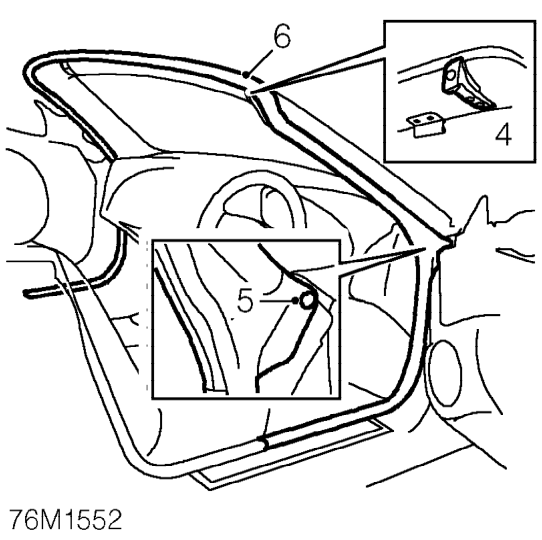

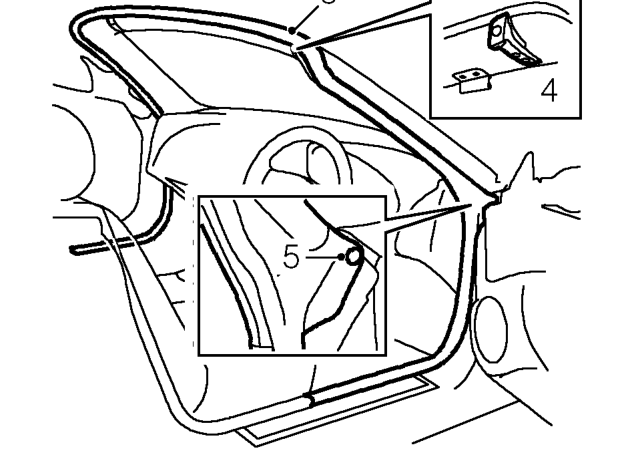

DOOR AND HEADER SEAL

Service repair no - 76.31.85

Remove

1. Open both doors.
2. Lower both sun visors.
3. Release catches and lower hood.

4. Remove 2 Tx30 Torx screws securing each hood striker and remove both strikers.
5. Remove 2 studs securing seal to ’A’ posts.
6. Remove seal.

Refit

1. Position and centralise seal to header rail.
2. Secure seal to ’A’ posts with studs.
3. Engage seal to flanges of header, ’A’ posts and sills.
4. Fit hood strikers and tighten screws to 6 Nm.
5. Reposition sun visors.
6. Raise hood and secure catches.
7. Close doors.

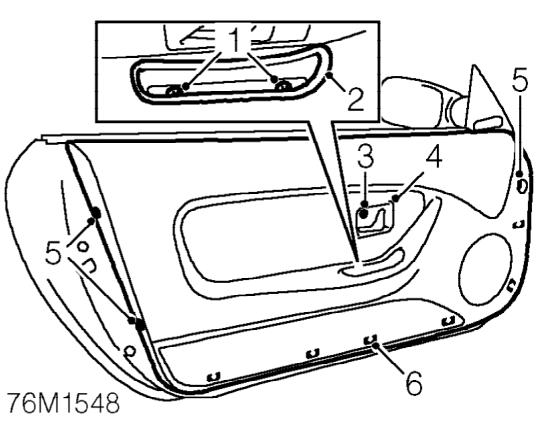

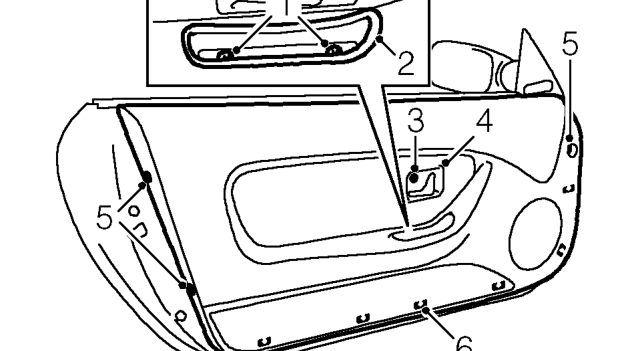

TRIM CASING

Service repair no - 76.34.01/99

Remove

1. Remove 2 screws securing door pull.
2. Remove door pull from trim casing.
3. Remove screw securing remote door handle escutcheon.
4. Remove remote door handle escutcheon.
5. Remove 3 screws securing trim casing.
6. Release 6 lower trim casing retaining clips, remove trim casing.

Refit

1. Fit trim casing to door and secure with clips.
2. Fit screws securing trim casing to door.
3. Fit remote door handle escutcheon and secure with screw.
4. Fit door pull to trim casing and secure with screws.
