OUTSIDE HANDLE

Service repair no - 76.58.07

Remove

  1. Remove trim casing. See this section.
  2. Switch the ignition ON and fully lower door glass.
  3. Switch ignition OFF.
  4. Carefully peel back corner of plastic sheet to allow access to door latch.

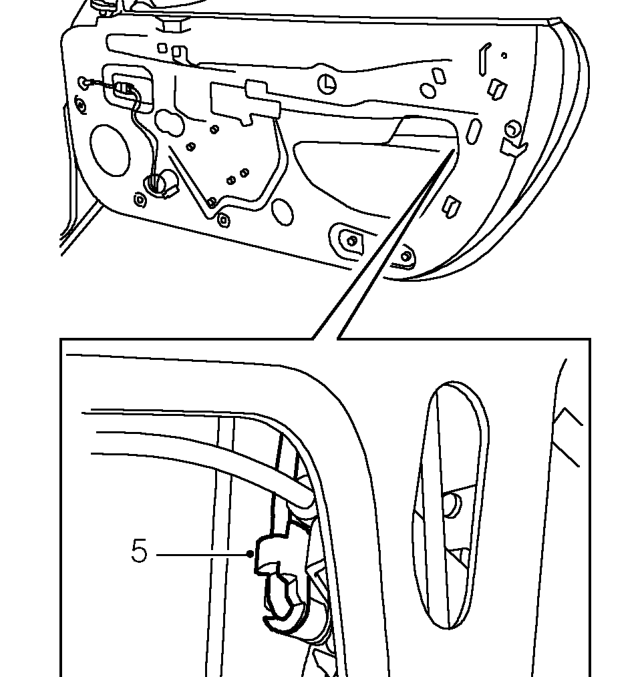

Outside handle – Carefully peel back corner of plastic sheet to allow access to door latch.
  1. Release clip securing door handle link rod to latch assembly and position aside.
  2. Driver’s side: release lock link rod from lock.

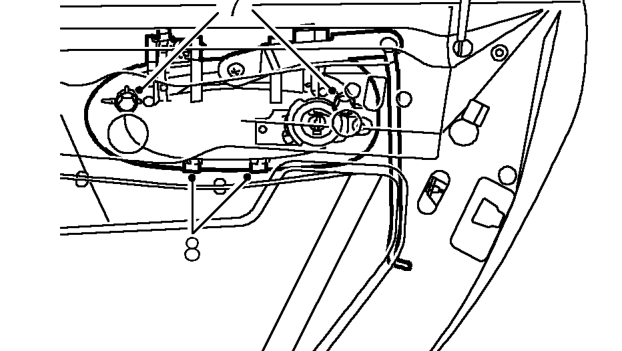

Outside handle – Driver’s side: release lock link rod from lock.
  1. Remove 2 bolts securing handle to door.
  2. Release 2 clips retaining handle to door and position handle.

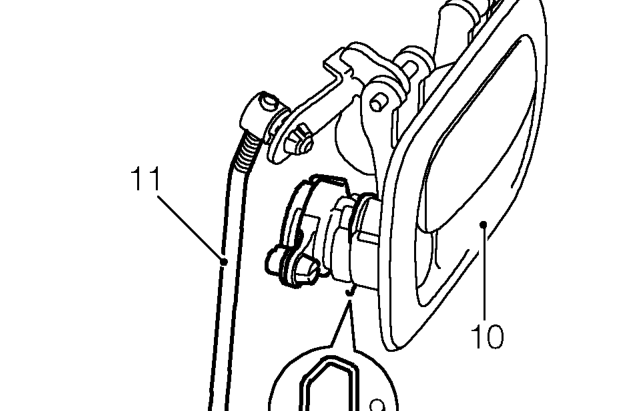

Outside handle – Release 2 clips retaining handle to door and position handle.
  1. Release clip securing lock to handle and remove lock.
  2. Remove handle.
  3. Remove rod from handle.
