Workshop Manuals Factory service & repair MG
MG MGF Factory Workshop Manual (1995-2000)17 · Body
17 · Body & interior

Glass

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Doors › Glass
BodyGlass

GLASS

Service repair no - 76.31.01

Remove

  1. Remove trim casing. See this section.
Glass – Remove trim casing. See this section.

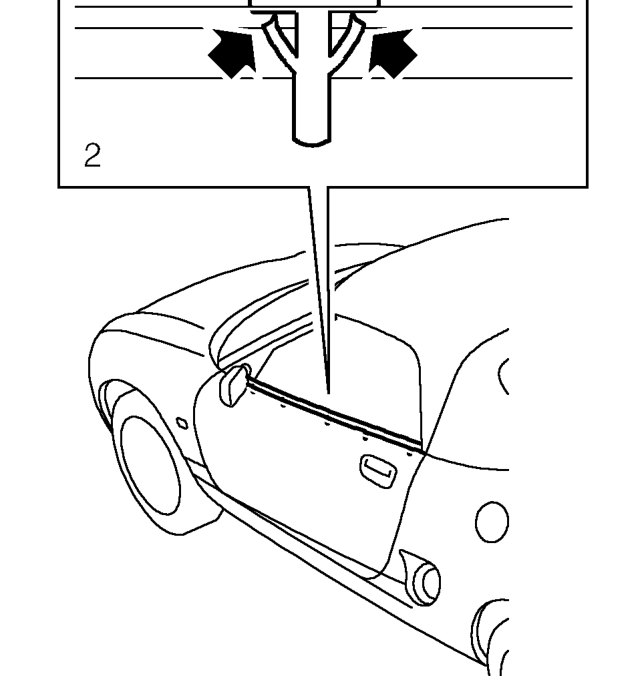

  1. Release 5 clips securing outer waist seal to door and remove seal.
  2. Peel back plastic sheet to allow access to inner door.
  3. Switch ignition ON and lower window to allow access to bolts.
  4. Switch ignition OFF.
Glass – Switch ignition OFF.

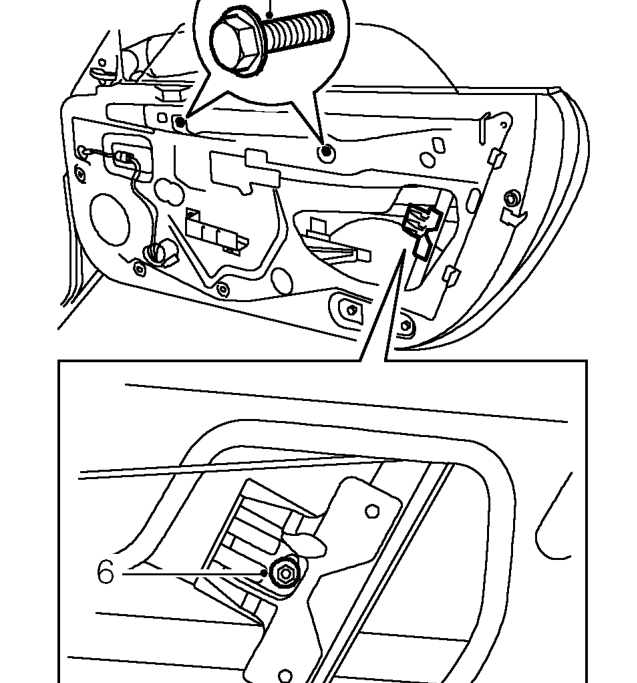

  1. Remove 3 bolts securing glass to regulator.
  2. Remove glass.

Refit

  1. Position glass to regulator and align rear guide to glass.
  2. Fit bolts securing glass to regulator but do not tighten.
  3. Adjust door glass. See this section.
  4. Position plastic sheet and secure in place.
  5. Fit outer waist seal and secure with clips.
  6. Fit trim casing. See this section.
