MG MGF Factory Workshop Manual (1995-2000)17 · Body
17 · Body & interior

Door mirror - up to 2000my

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Doors › Door mirror - up to 2000my
BodyDoor mirror - up to 2000my

DOOR MIRROR - UP TO 2000MY

Service repair no - 76.10.52

Remove

  1. Remove trim casing. See this section.

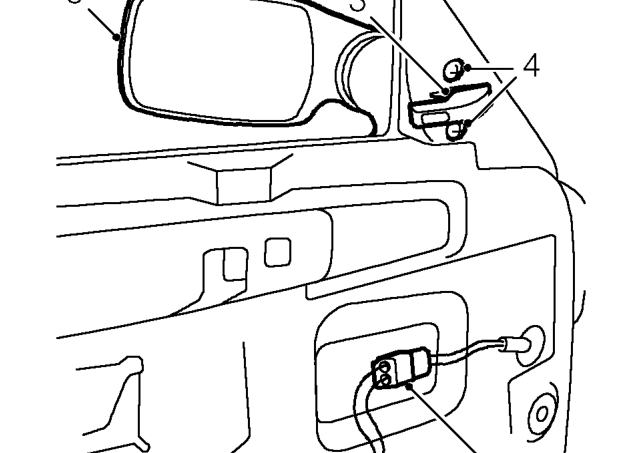

Door mirror - up to 2000my – Remove trim casing. See this section.
  1. Disconnect heated door mirror glass multiplug.
  2. Remove door mirror adjustment lever.
  3. Remove 2 screws securing door mirror to cheater panel.
  4. Release mirror harness from cheater and remove mirror.

Refit

  1. Feed mirror harness through cheater, align mirror and tighten screws.
  2. Fit door mirror adjustment lever.
  3. Connect door mirror harness multiplug to vehicle harness.
  4. Fit trim casing. See this section.

MIRROR - EXTERIOR - ELECTRIC - 2000MY ON

Service repair no - 76.10.57

Remove

  1. Remove front door casing. See this section.

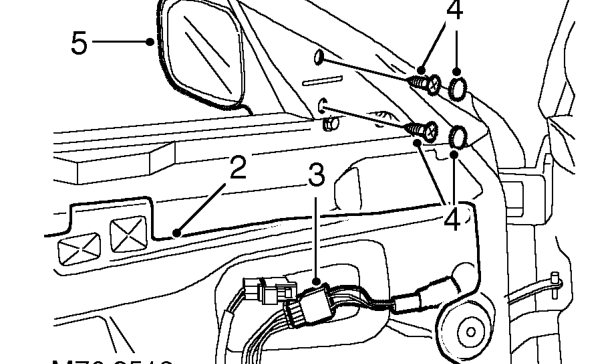

Mirror - exterior - electric - 2000my on – Remove front door casing. See this section.
  1. Release plastic sheet to access mirror multiplug.
  2. Disconnect mirror multiplug and attach draw string to mirror harness.
  3. Remove 2 screw caps and screws securing mirror.
  4. Remove exterior mirror.
  5. Remove draw string from mirror harness.

Refit

  1. Attach draw string to mirror harness and feed harness into door. Remove draw string from mirror harness.
  2. Position exterior mirror to door and secure with screws.
  3. Fit screw caps.
  4. Connect mirror multiplug.
  5. Secure plastic sheet in correct position.
  6. Fit front door casing. See this section.
