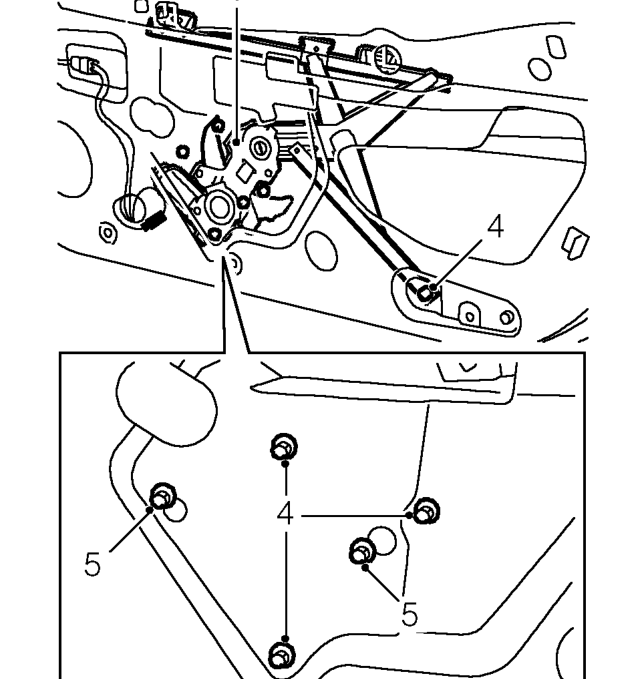

Door glass regulator

DOOR GLASS REGULATOR

Service repair no - 76.31.45

Remove

1. Remove glass. See this section.
2. Remove plastic sheet. See this section.
3. Disconnect multiplug from motor.

4. Remove 4 bolts securing regulator to door.
5. Loosen 2 bolts securing regulator to door.
6. Remove regulator.

Refit

1. Position regulator to door and feed multiplug through aperture.
2. Align bolts to slotted holes and tighten to 7 Nm.
3. Fit and tighten bolts to 7 Nm.
4. Fit glass. See this section.
5. Fit plastic sheet. See this section.

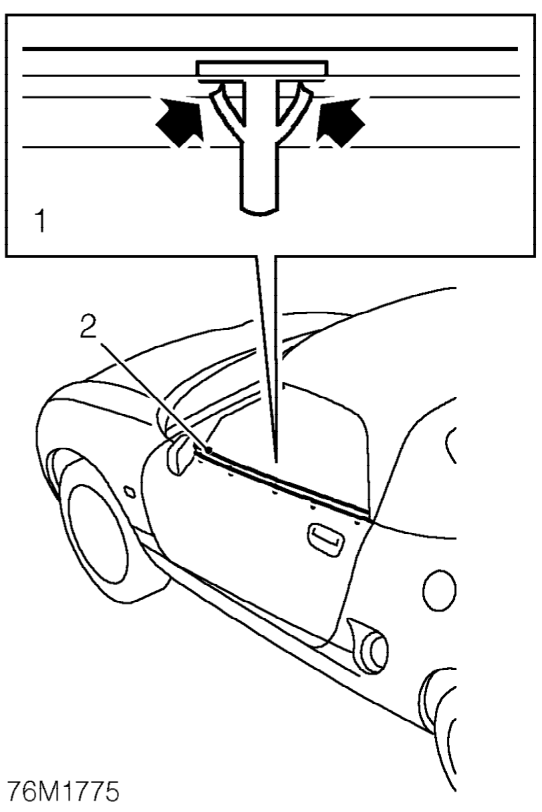

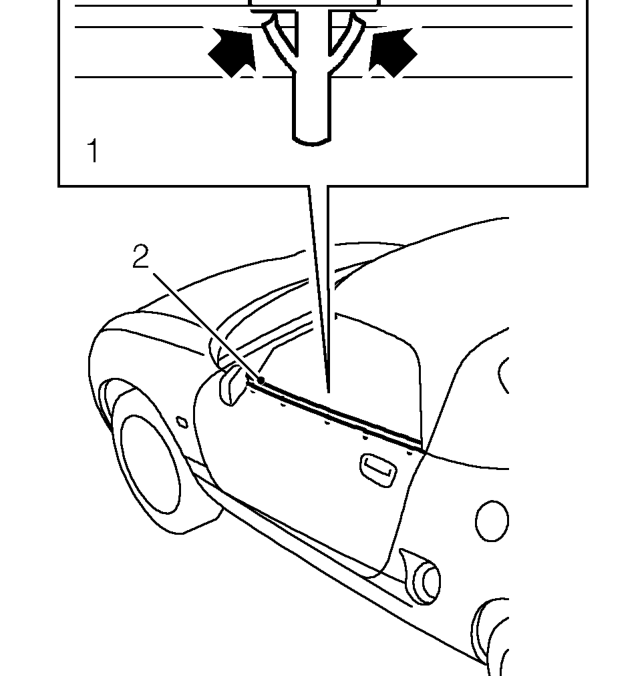

OUTER WAIST SEAL

Service repair no - 76.31.53

Remove

1. Starting from the rear of the door, release 5 clips securing seal to door.
2. Remove seal.

Refit

1. Position seal to door and align clips.
2. Fit seal and engage clips.
