BACKLIGHT ZIP

Service repair no - 76.61.21

Remove

  1. Remove backlight assembly. See this section.
  2. Entrust replacement of zip to trim specialist.

Refit

  1. Refit backlight assembly. See this section.

HARD TOP HEADLINING

Service repair no - 76.61.31

Remove

  1. Remove front catches. See this section.

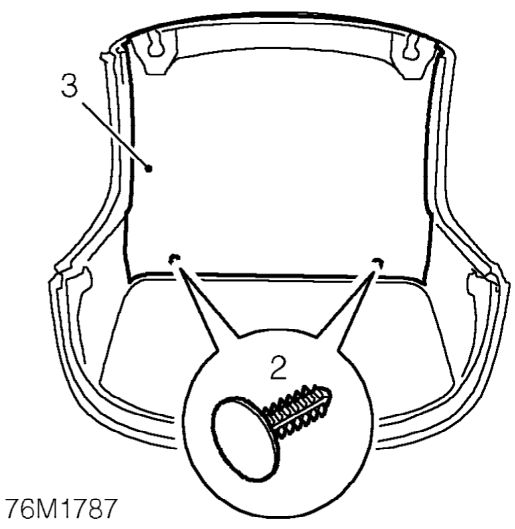

Hard top headlining – Remove front catches. See this section.
  1. Remove 2 trim studs securing rear of headlining to hard top.
  2. Remove headlining.

Refit

  1. Position headlining and secure with trim studs.
  2. Fit front catches. See this section.
